EVP

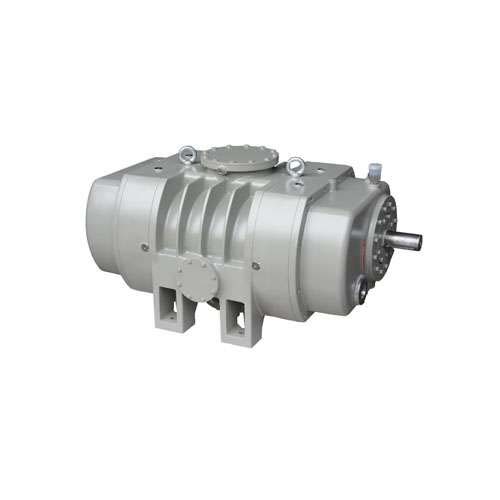

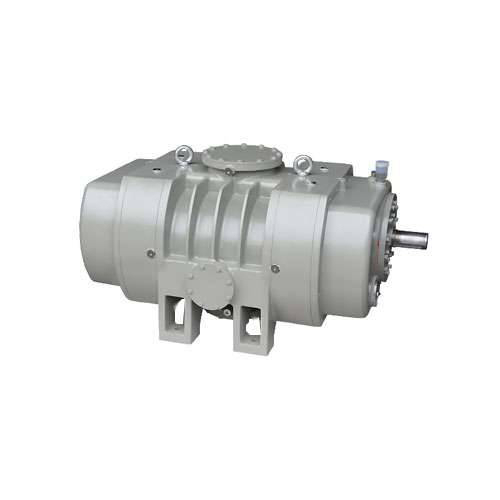

ZJQ Series Air-cooled Roots Vacuum Pump

Brand: EVP

Classification: Roots Vacuum Pump

WITH BACKING PUMP: 0.05PA ABS

NO BACKING PUMP: 20000PA ABS

Availability : In Stock

Apart from high-speed and small-size, Air-cooled Roots Vacuum Pump will not become over - temperature after continuous work under high pressure

CONTACT US FOR MORE INFORMATION
Model Ultimate Pressure Capacity   (L/s) Rotation Speed(RPM) Inlet&Outlet Diam.(mm) The cooling Gas Inlet Diam Max.Compression At Zero Throughput Motor Power (kw)
With Backing Pump Without Backing Pump
ZJQ-450 5*10-2 2*104 450 990 200 2*Φ100 30 5.5~45
ZJQ-600 5*10-2 1.3*104 600 1490 200 2*Φ100 40 7.5~60
ZJQ-900 5*10-2 2.0*104 900 990 250 2*Φ160 32 11~90
ZJQ-1200 5*10-2 1.3*104 1200 1490 250 2*Φ160 43 11~132
ZJQ-2500 5*10-2 2.0*104 2500 990 400 2*Φ160 35 18.5~250
ZJQ-3750 5*10-2 1.3*104 3750 1490 400 2*Φ160 45 30~250



The pump and the unit can reach a variety of extreme vacuum and working pressure. In the following cases, can use air pump itself or its system.
① the load is particularly large;
② pumping time is short;
③ coarse vacuum to high vacuum are required large pumping speed;
④ need to avoid the ordinary pump working medium occasions.
The pump and system can be widely used in vacuum smelting, vacuum drying, vacuum impregnation, vacuum distillation, vacuum degassing, aeronautical simulation test, gas transportation, vacuum suction and power station vacuuming and other vacuum operations.

Contact us

If possible, kindly suggest please your working industry/process, working pressure, working medium, etc. Given detailed request helps to gain better-matched customized solution. Thanks for your patience.

your request will be responsed within 3 hours, kindly pay attention to your email please.
