Due to market demand, we changed the design of the original dry screw vacuum pump. The removable racks and box enclosures adds some advantages to the equipment.

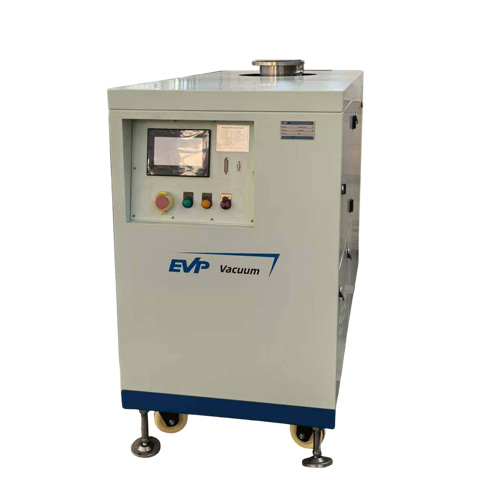

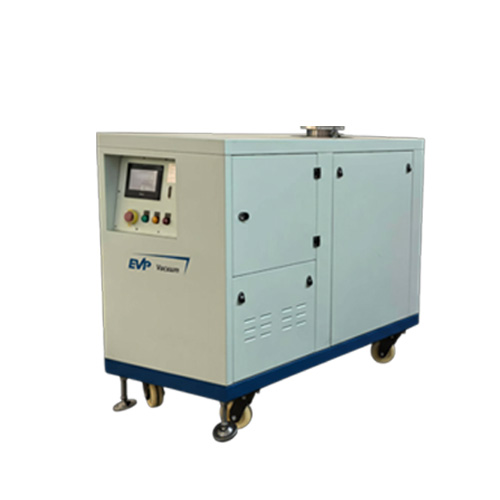

1.The pump is equipped with a movable frame, which can be operated by a single person to transfer and fix the equipment, and is suitable for multi-point mobile operations.

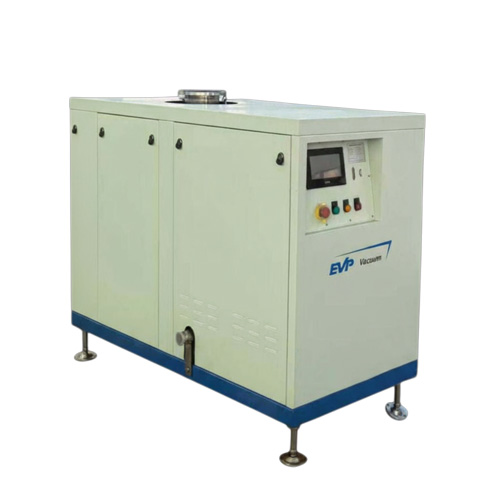

2.The pump is encased in a box-type casing, which has strong environmental adaptability, and the appearance of the equipment is neat and artistic.
3.The external power supply, cooling water circuit, air source circuit of the pump are concentrated on the side panel, making it easy for customers to disassemble and install.
4.The pump can be equipped with frequency conversion control, water-cooled motor, temperature monitoring, flow monitoring and other devices, with high stability.
5.The pump can be equipped with PLC control, wireless WiFiand Modbus standard communication protocols to facilitate mobile data exchange.
Technical Specification:
| Model | Flow Rate
50/60Hz |
Ultimate Vacuum
50/60Hz |
Power 50/60Hz |
Speed 50/60Hz |
Inlet |
Silencer outlet |
Cooling Water Volume |
Weight |
||
| m3/hr | CFM | L/s | Pa | kW | RPM | mm | mm | L/min | kg | |
| B-LG50 | 180/216 | 105/127 | 50/60 |
2/1 |
7.5 | 2900
/3550 |
65 | 50 | 2.5 | 295 |
| B-LG70 | 250/300 | 147/176 | 70/84 | 7.5 | 80 | 50 | 2.6 | 350 | ||
| B-LG110 | 400/480 | 235/282 | 110/132 | 15 | 100 | 80 | 2.8 | 480 | ||
| B-LG150 | 540/650 | 317/382 | 150/180 | 18.5 | 150 | 80 | 3 | 520 | ||
| B-LG200 | 720/850 | 423/500 | 200/240 | 22 | 150 | 100 | 4 | 680 | ||
| B-LGB70 | 250/300 | 147/176 | 70/84 | 7.5 | 65 | 50 | 2.5 | 295 | ||
| B-LGB110 | 400/480 | 235/282 | 110/132 | 7.5 | 80 | 50 | 2.6 | 350 | ||
| B-LGB160 | 576/690 | 339/406 | 160/192 | 15 | 100 | 80 | 2.8 | 480 | ||
| B-LGB220 | 792/950 | 466/559 | 220/264 | 18.5/22 | 150 | 80 | 3 | 520 | ||
| B-LGB330 | 1188/1425 | 699/839 | 330/396 | 30 | 150 | 100 | 4 | 680 | ||
| B-LGB280 | 1008/1210 | 593/712 | 280/336 | 100/70 | 22 | 150 | 80 | 3.2 | 520 | |
| B-LGB300 | 1080/1290 | 635/758 | 300/360 | 22 | 150 | 80 | 4 | 520 | ||
| B-LG300A | 1080/1290 | 636/759 | 300/360 | 30/37 | 150 | 100 | 2.8 | 680 | ||
Remark:
1.The oil consumption on above sheet is for reference only. The machine can always adopt fluoride or mineral substance oil. Pump oil and lubricant oil will be matched before delivery.
2.Above cooling water consumption data is tested with ambient temp at 30℃, cooling water suction temp at 20℃, and water pressure from 0.15MPa to 0.2MPa. Various working condition will cause different cooling water consumption.
