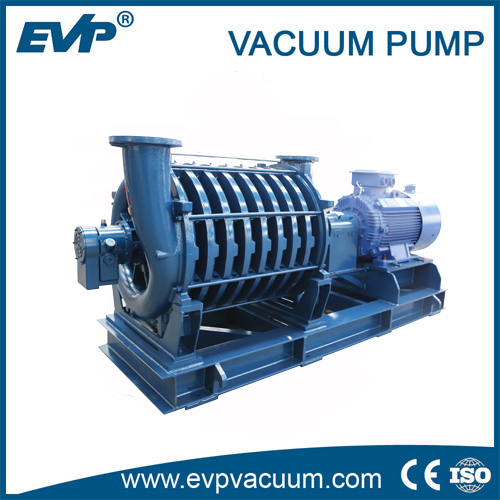

C Series Casting Multistage Centrifugal Vacuum Pump

Availability :
In Stock
Description: C Series casting multistage centrifugal vacuum pump
Email : contact@evpvacuum.com(your request will be responsed within 1 hour.)
Wechat : +86 13162688673
WhatsApp : +86 13162688673

C Series casting multistage centrifugal vacuum pump, based on technology of welding multistage low speed centrifugal .designed and developed by Shanghai EVP Vacuum technology Co., LTD is new generation high efficiency product, gathering some patented technologies and longtime blower and Vacuum pump, experiences of design and fabrication, which can satisfy users’ appeal.

Product Features:
♦The shell of inlet and outlet, and return channel of vacuum pump are fully adapt to impeller,The streamline design reduces loss.
♦The impeller is designed by three-dimensional meridian plane and compound curve technology, enjoys high efficiency.
♦The impeller intake seal-inducer improves inlet fluidity of impeller.
♦The airfoil return-flow blade can reduces loss ,gets high static pressure.
♦The vacuum pump performance was optimized with fluid analysis technology,The polytropic efficiency is up to 78%.
♦Some vacuum pump use Three-dimensional impeller, which have high efficiency and good performance.
♦After strict dynamic balance, the rotor has low vibration, high reliability and low overall noise.
♦The structure of vacuum pump is advanced and reasonable Easy-worn parts are few. Installation, operation and maintenance
are convenient.

Application:
Soil purification, Waste gas treatment, Biogas Recovery, Vacuum Cleaning, Suction crown, Vacuum packing, Pneumatic transmission, Drying and Dehydration, Central Collection System, Paper-making and Printing etc.

Structural of Product:
The vacuum pump is consists of stator, rotor, driving device and so on. It has one suction and two supports. The rotor consists of multi-stage impellers. Motor and vacuum pump are installed independently, or are installed on the same common base according to owner’s demand (indicating before order).Motor and vacuum pump are direct connected with coupling (The mini-type vacuum pump connect with belt).Watching from the tail of motors (For the mini-type vacuum pump, it is shaft protraction), the vacuum pump is clockwise rotation.

♦Stator
The stator is vertical split type structure, which is consists of the inlet chamber, intermediate casing and discharge scroll case, these parts make up of the gas channels with bolts. The inlet chamber, intermediate casing and discharge scroll case are founded using high quality cast iron and rosin model, having small distortion after strict anneal dispose. Stator with high precision and high coaxial can insure stable operation of rotor assembly.

♦Rotor
Rotor is consists of impellers, main shaft, shaft sleeve, half coupling and so on. The main shaft makes use of the high quality carbon-steel, and carries through quenching and tempering. After assembly, the rotor was dynamically balanced to ensure steady and reliable running.

♦ Impeller
Based on the requirement, casting-impeller and welding-impeller are adopted. Casting-impeller is precisely cast with high strength aluminum-alloy. And the welding-impeller is welded of a hub .cover and wanes ,in the course of welding, heat treatment should be done several times to eliminate welding stress. Each single impeller is dynamically balanced and tested with high speed after precisely machining.

♦Bearing housing
Bearing housing material is cast iron, they are disposed on two sides of vacuum pump installing and replacing bearings are easy. There are thermal hole and vibration hole on the bearing housing. We can do different configuration according to different owners. Standard vacuum pump bearing housing s is air-cooled. If owner need, we also provide water-cooling bearing housing.

♦ Bearing and lubricating
The bearings are SKF products, which design life are 100000 hours, and lubricated by employing high grade grease or lubricating oil.

♦Seal
Many groups of non-contact labyrinth seals are installed on the end and front of the main shaft and every stage impeller.
They have so good sealing performance that vacuum pump only have little leak.

♦Oil tank
Standard vacuum pump use large-scale oil tank to reduce oil temperature without water, prolonging the life of lubrication and bearings. The oil tank adopts double oil-chamber splash lubrication to provide enough lubrication and avoid the oil froth effect and oil leakage. The oil level indicator and exhaust body are fixed on the oil tank.

♦Shaft seal
The shaft seals locate at two sides of the vacuum pump, which can be replaced without dis-assembly of body. The shaft seals include the labyrinth seal and carbon ring seal The labyrinth seal is used at the standard vacuum pump(air vacuums).The carbon ring seal is used at the special vacuums pump (special gas vacuums).

♦Drive
The mini-type vacuums pump adopt belt drive, the other vacuums pump adopt the flexible pin coupling or the diaphragm
coupling.

Quality Guarantee
♦IS09001 Quality Certification
♦Product Fabrication and Design Standard : JB/T7258-2006 iGeneral-purpose Centrifugal Blower
♦lest Stand : JB/T3165-1999《Thermal Performance lest for Centrifugal and Axial Blowers and Compressors》
♦Strictly control each working process of parts, and built-up adequate product files.

Control System
Electric company can provide good-operation LCP and MCP, Via MCP. many parallel vacuum pump can achieve remote monitored and local control.

Accessories
Standard accessories contains coupling, protective cover and anchor bolts (with nuts and washers),Special accessories.(silencer and so on) are prepared according to the contract. Please order separately.

Performance Parameters

Type

Discharge Condition

Suction Temperature

•c

Speed rpm

Vacuum

KPa(G)



Axial

Power

kW

Motor Blower Weight kg Inlet

Flange

DN

(PN1.0MPa)

Outlet

Flange

DN

(PN1.0MPa)



Capacity

m3/min



Pressure kPa(A)



Type



Power

kW



Weight

kg

C30-1.25Z 30 101.32 20 2980 -20 14.5 Y160L-2 18.5 150 1800
C30-1. 35Z 30 101.32 20 2980 -25 17.8 Y180M-2 22 180 2010
C30-1.45Z 30 101.32 20 2980 -30 21.2 Y200L1-2 30 244 2150
C30-1. 55Z 30 101.32 20 2980 -35 24.2 Y200L1-2 30 244 2300
C30-1. 7Z 30 101.32 20 2980 -40 27.2 Y200L2-2 37 255 2450
C40-1.25Z 40 101.32 20 2980 -20 19.1 Y180M-2 22 180 1810
C40-1. 35Z 40 101.32 20 2980 -25 23.8 Y200L1-2 30 240 2020
C40-1.45Z 40 101.32 20 2980 -30 28.1 Y200L2-2 37 255 2160 200 200
C40-1. 55Z 40 101.32 20 2980 -35 32.2 Y200L2-2 37 255 2350
C40-1.7Z 40 101.32 20 2980 -40 36.3 Y225M-2 45 309 2600
C50-1. 25Z 50 101.32 20 2980 -20 23.7 Y200L1-2 30 244 1830
C50-1. 35Z 50 101.32 20 2980 -25 29.7 Y200L2-2 37 255 2030
C50-1.45Z 50 101.32 20 2980 -30 35.4 Y225M-2 45 544 2170
C50-1. 55Z 50 101.32 20 2980 -35 40.7 Y225M-2 45 309 2370
C50-1. 7Z 50 101.32 20 2980 -40 45.4 Y250M-2 55 403 2620
C60-1. 25Z 60 101.32 20 2980 -20 28.8 Y200L2-2 37 255 2290
C60-1. 35Z 60 101.32 20 2980 -25 35.1 Y225M-2 45 255 2600
G60-1.45Z 60 101.32 20 2980 -30 41. 6 Y225M-2 45 255 2750
G60-1. 55Z 60 101.32 20 2980 -35 47.2 Y250M-2 55 403 3060
C60-1. 7Z 60 101.32 20 2980 -40 53.8 Y280S-2 75 544 3310
C60-1. 8Z 60 101.32 20 2980 -45 59.1 Y280S-2 75 544 3460
C60-2. OZ 60 101.32 20 2980 -50 63.8 Y280S-2 75 544 3510
C70-1. 25Z 70 101.32 20 2980 -20 33.3 Y200L2-2 37 255 2610 250 250
C70-1. 35Z 70 101.32 20 2980 -25 40.6 Y225M-2 45 544 2760
C70-1.45Z 70 101.32 20 2980 -30 48.2 Y250M-2 55 403 2920
C70-1. 55Z 70 101.32 20 2980 -35 55.2 Y280S-2 75 544 3090
C70-1. 7Z 70 101.32 20 2980 -40 62.7 Y280S-2 75 544 3320
C70-1. 8Z 70 101.32 20 2980 -45 69.1 Y280M-2 90 620 3470
C70-2. OZ 70 101.32 20 2980 -50 74.6 Y280M-2 90 620 3520
C80-1. 25Z 80 101.32 20 2980 -20 38.0 Y225M-2 45 255 2650
C80-L 35Z 80 101.32 20 2980 -25 46.4 Y250M-2 55 403 2810
C80-1.45Z 80 101.32 20 2980 -30 55.1 Y280S-2 75 544 2970
C80-1. 55Z 80 101.32 20 2980 -35 63.2 Y280S-2 75 544 3140 300 250
C80-1. 7Z 80 101.32 20 2980 -40 71.8 Y280M-2 90 620 3370
C80-1. 8Z 80 101.32 20 2980 -45 793 Y280M-2 90 620 3520
C80-2. OZ 80 101.32 20 2980 -50 86.7 Y315S-2 110 980 3570



Type

Discharge Condition

Suction Temperature

•c

Speed rpm

Vacuum

KPa(G)



Axial

Power

kW

Motor Blower Weight kg Inlet

Flange

DN (PN1.0MPa)

Outlet

Flange

DN

(PN1.0MPa)

Capacity

m3/min

Pressure kPa(A)

Type



Power

kW

Weight

kg

C9O-1.25Z 90 101.32 20 2980 -20 42.7 Y250M-2 55 403 2660
C90-1. 35Z 90 101.32 20 2980 -25 52.3 Y280S-2 75 544 2870
C90-1. 45Z 90 101.32 20 2980 -30 61.9 Y280S-2 75 544 3280
C90-1. 55Z 90 101.32 20 2980 -35 71.5 Y280M-2 90 620 3290
C90-1.7Z 90 101.32 20 2980 -40 81.6 Y315S-2 110 980 3660
C90-1.8Z 90 101.32 20 2980 -45 91.2 Y315S-2 110 980 4110
C90-2. OZ 90 101.32 20 2980 -50 99-7 Y315M1-2 132 1080 4610
C1OO-1.25Z 100 101.32 20 2980 -20 46.2 Y250M-2 55 403 2670
C1OO-1.35Z 100 101.32 20 2980 -25 56.8 Y280S-2 75 544 2880
G100-1.45Z 100 101.32 20 2980 -30 69.2 Y280M-2 90 620 3290
G1OO-1.55Z 100 101.32 20 2980 -35 80.3 Y315S-2 110 980 3300
G100-1.7Z 100 101.32 20 2980 -40 91.8 Y315S-2 110 980 3670
C100-1.8Z 100 101.32 20 2980 -45 101.8 Y315M1-2 132 1080 4120
C100-2. OZ 100 101.32 20 2980 -50 110.2 Y315M1-2 132 1080 4620
C110-1.25Z 110 101.32 20 2980 -20 50.7 Y280S-2 75 544 2670 300 250
C110-1.35Z 110 101.32 20 2980 -25 62.8 Y280S-2 75 544 2880
C110-1.45Z 110 101.32 20 2980 -30 76.3 Y280M-2 90 620 3290
C110-1.55Z 110 101.32 20 2980 -35 88.9 Y315S-2 110 980 3300
C110-1.7Z 110 101.32 20 2980 -40 101.0 Y315M1-2 132 1080 3670
C110-1.8Z 110 101.32 20 2980 -45 112.0 Y315L1-2 160 1160 4120
C110-2.0Z 110 101.32 20 2980 -50 121.4 Y315L1-2 160 1160 4620
C120-1.25Z 120 101.32 20 2980 -20 55.4 Y280S-2 75 544 2680
C120-1.35Z 120 101.32 20 2980 -25 68.9 Y280M-2 90 620 2890
C120-1.45Z 120 101.32 20 2980 -30 83-7 Y315S-2 110 980 3300
C120-1.55Z 120 101.32 20 2980 -35 96.6 Y315S-2 110 980 3310
C120-1.7Z 120 101.32 20 2980 -40 110.0 Y315M1-2 132 1080 3680
C12O-1.8Z 120 101.32 20 2980 -45 121.8 Y315L1-2 160 1160 4130
C120-2. OZ 120 101.32 20 2980 -50 132.5 Y315L1-2 160 1160 4630
C13O-1.25Z 130 101.32 20 2980 -20 59.6 Y280S-2 75 544 2780
C13O-1.35Z 130 101.32 20 2980 -25 74.1 Y280M-2 90 620 2990
C130-1.45Z 130 101.32 20 2980 -30 90.0 Y315S-2 110 980 3000
C13O-1.55Z 130 101.32 20 2980 -35 104.9 Y315M1-2 132 1080 3410
C130-1.7Z 130 101.32 20 2980 -40 119.4 Y315L1-2 160 1160 3780
C130-1.8Z 130 101.32 20 2980 -45 131.9 Y315L1-2 160 1160 4230
C130-2. OZ 130 101.32 20 2980 -50 144.2 Y315L2-2 185 1220 4730



Type



Discharge Condition

Suction Temperature

•c

Speed rpm

Vacuum

KPa(G)



Axial

Power

kW

Motor Blower Weight kg Inlet

Flange

DN (PN1.0MPa)

Outlet

Flange

DN

(PN1.0MPa)

Capacity

m3/min

Pressure kPa(A)

Type



Power

kW

Weight

kg

C140-1.25Z 140 101.32 20 2980 -20 62.4 Y280S-2 75 544 3040





























350































350

C140-1.35Z 140 101.32 20 2980 -25 78.2 Y280M-2 90 620 3050
C140-1.45Z 140 101.32 20 2980 -30 94.2 Y315S-2 110 980 3630
C140-1.55Z 140 101.32 20 2980 -35 104.5 Y315M1-2 132 1080 4270
C140-1.7Z 140 101.32 20 2980 -40 116.3 Y315L1-2 160 1160 4850
C140-1.8Z 140 101.32 20 2980 -45 129.2 Y315L1-2 160 1160 5540
C140-2. 0Z 140 101.32 20 2980 -50 141.0 Y315L2-2 185 1220 5560
C150-1.25Z 150 101.32 20 2980 -20 66.5 Y280S-2 75 544 3050
C150-1.35Z 150 101.32 20 2980 -25 83.4 Y315S-2 110 980 3060
C150-1.45Z 150 101.32 20 2980 -30 100.7 Y315M1-2 132 1080 3640
C150-1.55Z 150 101.32 20 2980 -35 112.0 Y315M1-2 132 1080 4280
C150-1.7Z 150 101.32 20 2980 -40 124.8 Y315L1-2 160 1160 4860
C150-1.8Z 150 101.32 20 2980 -45 138.7 Y315L1-2 160 1160 5550
C150-2. 0Z 150 101.32 20 2980 -50 151.2 Y315L2-2 185 1220 5570
C160-1.25Z 160 101.32 20 2980 -20 71.5 Y280M-2 90 620 3060
C160-1.35Z 160 101.32 20 2980 -25 89.8 Y315S-2 110 980 3070
C160-1.45Z 160 101.32 20 2980 -30 107.8 Y315M1-2 132 1080 3650
C160-1.55Z 160 101.32 20 2980 -35 120.0 Y315L1-2 160 1160 4290
C16O-1.7Z 160 101.32 20 2980 -40 133.1 Y315L1-2 160 1160 4870
C160-1.8Z 160 101.32 20 2980 -45 147.5 Y315L2-2 185 1220 5560
C160-2. 0Z 160 101.32 20 2980 -50 161.8 Y315L2-2 200 1220 5580
C18O-1.25Z 180 101.32 20 2980 -20 80.3 Y315S-2 110 980 3070
C180-1.35Z 180 101.32 20 2980 -25 101.0 Y315M1-2 132 1080 3080
C180-1.45Z 180 101.32 20 2980 -30 121.1 Y315L1-2 160 1160 3660
C180-1.55Z 180 101.32 20 2980 -35 135.3 Y315L1-2 160 1160 4300
C180-1.7Z 180 101.32 20 2980 -40 150.1 Y315L2-2 185 1220 4880
C180-1.8Z 180 101.32 20 2980 -45 167.5 Y315L2-2 200 1220 5570
C180-2. 0Z 180 101.32 20 2980 -50 181.3 Y355M1-2 220 1650 5590
C200-1. 25Z 200 101.32 20 2980 -20 89.3 Y315S-2 110 980 3080
C200-1. 35Z 200 101.32 20 2980 -25 111.8 Y315M1-2 132 1080 3090
C200-1.45Z 200 101.32 20 2980 -30 134.5 Y315L1-2 160 1160 3670
C200-1.55Z 200 101.32 20 2980 -35 149.7 Y315L2-2 185 1220 4880
C200-1.7Z 200 101.32 20 2980 -40 166.7 Y315L2-2 200 1220 4890
C200-1. 8Z 200 101.32 20 2980 -45 185.1 Y355M1-2 220 1650 5580
C200-2. 0Z 200 10L32 20 2980 -50 203.7 Y355M2-2 250 1760 5600



Type



Discharge Condition

Suction Temperature

•c

Speed rpm

Vacuum

KPa(G)



Axial

Power

kW

Motor Blower Weight kg Inlet

Flange

DN (PN1.0MPa)

Outlet

Flange

DN

(PN1.0MPa)

Capacity

m3/min

Pressure kPa(A)

Type



Power

kW

Weight

kg

C220-1.25Z 220 101.32 20 2980 -20 101.2 Y315M1-2 132 1080 3180
C220-1. 35Z 220 101.32 20 2980 -25 132.3 Y315L1-2 160 1160 3770
C220-1.45Z 220 101.32 20 2980 -30 165.2 Y315L2-2 200 1080 4410
C220-1.55Z 220 101.32 20 2980 -35 174.0 Y355M1-2 220 1160 4430
C220-1.7Z 220 101.32 20 2980 -40 194. 1 Y355M2-2 250 1760 5000
C220-1.8Z 220 101.32 20 2980 -45 215.7 Y355M2-2 250 1760 5690
C220-2. 0Z 220 101.32 20 2980 -50 238.6 Y355L1-2 280 1830 5720 400 350
C250-1.25Z 250 101.32 20 2980 -20 114.5 Y315M1-2 132 1080 3200
C250-1. 35Z 250 101.32 20 2980 -25 142.8 Y315L1-2 160 1160 4050
C250-1.45Z 250 101.32 20 2980 -30 168.5 Y315L2-2 200 544 4800
C25O-1.55Z 250 101.32 20 2980 -35 189.1 Y355M1-2 220 544 4820
C25O-1.7Z 250 101.32 20 2980 -40 215.1 Y355M2-2 250 1760 5700
C25O-1.8Z 250 101.32 20 2980 -45 242.0 Y355L1-2 280 1830 5750
C250-2. 0Z 250 101.32 20 2980 -50 262.8 Y355L2-2 315 1900 6450
C300-1.25Z 300 101.32 20 2980 -20 137.0 Y315L1-2 160 1160 5000
G300-1.35Z 300 101.32 20 2980 -25 167.2 Y315L2-2 200 1220 6150
C300-1.45Z 300 101.32 20 2980 -30 197.0 Y355M2-2 250 1760 7300
C300-1.55Z 300 101.32 20 2980 -35 223.8 Y355L1-2 280 1830 7350
G300-1.7Z 300 101.32 20 2980 -40 257.3 Y355L2-2 315 1900 8450
C300-18Z 300 101.32 20 2980 -45 278.8 YKK40Q-2* 355 2580 8500
C300-2. 0Z 300 101.32 20 2980 -50 315.1 YKK40O-2* 355 2580 9700 500 400
C350-1.25Z 350 101.32 20 2980 -20 158.8 Y315L2-2 200 1220 9700
C350-1.35Z 350 101.32 20 2980 -25 195.0 Y355M2-2 250 1760 5050
C350-1.45Z 350 101.32 20 2980 -30 228.2 Y355L1-2 280 1830 6200
C350-1.55Z 350 101.32 20 2980 -35 259.8 Y355L2-2 315 1900 7350
C350-1.7Z 350 101.32 20 2980 -40 290.0 YKK4CO-2* 355 2580 8500
C35O-1.8Z 350 101.32 20 2980 -45 322.5 YKK40O-2* 400 2680 8550
C350-2. 0Z 350 101.32 20 2980 -50 353.0 YKK40Q-2* 400 2680 9750

Notice:
1. When the atmospheric conditions and medium are varied, the relative performance conversion calculation will be different. We can re-designed in accordance with the requirement of users to adapt to different working condition.
2. When transporting non air medium, our company carries on the corresponding antiseptic treatment to the inside of the shell and the impeller, so as to satisfy the customer’s demand.
3. “*”are 6kV high-voltage motor, others are motors with voltage 380V.







Contact us

If possible, kindly suggest please your working industry/process, working pressure, working medium, etc. Given detailed request helps to gain better-matched customized solution. Thanks for your patience.

your request will be responsed within 3 hours, kindly pay attention to your email please.
