Brand: EVP
Classification: Vacuum Pump
Availability : In Stock
ZDF-5227 consists of one roads resistor and one roads ionization； ZDF-5227B ZDF-5227BY consists of two roads resistor and one roads ionization.
| Types
Parameters |
ZDF-5227v01
ZDF-5227Bv01 ZDF-5227BYv01 |
ZDF-5210v01
ZDF-5210Bv01 ZDF-5210BYv01 |
ZDF-5201v01
ZDF-5201Bv01 ZDF-5201BYv01 |
| Measuring Range（unit：Pa） | 1×105-1×10-5 | 1×105-1×10-4 | 1×105-1×10-8 |
| Matching Gauge | ZJ-52T ZJ-27 | ZJ-52T ZJ-10 | ZJ-52T ZJ-12 |
| Electrical Parameters | anode voltage : 225V
Cathode voltage : 25V Emission current: 1mA/100μA |
anode voltage : 165V
Cathode voltage : 50V Emission current: 0.5mA /50μA |
anode voltage : 200V
Cathode voltage :50V Emission current: 4mA/400μA |
| The Number of Measurements | Two roads or Three roads（Vacuum gauge with BY letter） | ||
| Display Window | Two or Three（Vacuum gauge with BY letter）display windows | ||
| Display Method | LED Digital Display：Scientific notation（1.0E 5 Pa stands for 1 ×105 Pa） | ||
| Control Point Output Mode | Six roads point control or regional control output through the six-terminal | ||
| Control Range | Full measure range control | ||
| Communication, Analog Output Mode | 0-5、4-20mA、RS232、RS485 output through the six-terminal, formula and protocol are optional | ||
| Zero Wander | ±5% | ||
| Input Power | AC/50HZ 220V±10% | ||
| Rated Power Consumption | 50W | ||
| Instrument Net Weight | 3.5Kg | ||

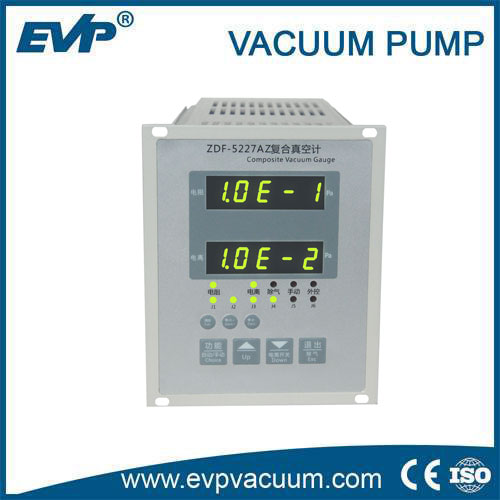

ZDF-5227 consists of one roads resistor and one roads ionization； ZDF-5227B \ ZDF-5227BY consists of two roads resistor and one roads ionization.
This series of composite vacuum gauge using the ARM system to measure the data nonlinear processing and error correction, So they have higher accuracy and repeatability, fast response, stable and reliable measurement, anti-interference ability and so on, and they are one of the ideal instruments for wide range vacuum measurement.
Product in Luxury spray chassis, Omron touch switch, green or red highlighted LED display, chassis structure is reasonable, anti-vibration ability, nice appearance.
Using digital filtering and optical isolation technology, with high measurement accuracy and anti-jamming capability.
Six sets of control signal output, and a light indicator.
A separate control system that can simultaneously measure, control and display multiplexed signals.
Using the ARM system for nonlinear compensation and error correction, and the measured pressure for full digital display, automatic shift, with a variety of control functions output.
The front panel resistor measurement section is equipped with “zero point+”, “zero point-” and “full scale” key-type calibration, to ensure that the instrument in the low vacuum measurement accuracy and easy adjustment.
