Under what circumstances should I buy a vacuum pump? Why is this a worthwhile investment?
Companies that want to make smart investments and returns have recognized the need to take advantage of the vacuum pump. And that’s not just in the short to medium term, but in the long term as well. Because the vacuum pump is destined to bring long – term and lasting cooperation. So, let’s look at applications and see how to choose the ideal long-term partner.
Vacuum pump is a kind of rotary variable capacitance vacuum pump must have the front stage pump to cooperate can be used in a wide range of pressure has a large speed to be removed gas contains dust and water vapor is not sensitive widely used in metallurgy, chemical industry, food, electronic coating and other industries. Classification of vacuum pump is widespread, mainly include simplify type, W type vacuum pump, vacuum pump 2 x series vacuum pump, what ZJ had type vacuum pump type, 2 SK, SK type vacuum pump, vacuum pump type 2 bv, MH – 2 type vacuum pump, vacuum pump type TLZ pump, SL type roots blower, JZJX type, JZJS type vacuum pump, vacuum pump JZJWLW type vacuum pump, JZJP type vacuum pump, RPP type vacuum pump, vacuum pump 2 xz type model.
A device for obtaining and maintaining a vacuum by means of mechanical, physical, chemical, physical and chemical extraction of air from a container. Vacuum pumps and other equipment (such as vacuum containers, vacuum valves, vacuum measuring instruments, connecting pipes, etc.) constitute a vacuum system, which is widely used in electronics, metallurgy, chemical industry, food, machinery, medicine, aerospace and other departments.
According to its working principle, it can be divided into two types: gas delivery pump and gas capture pump.
Gas pump includes:

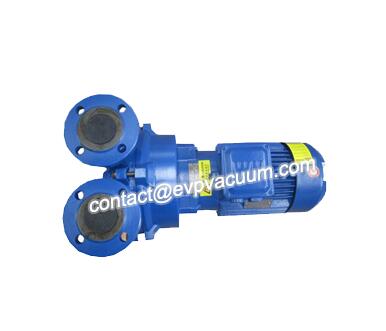

1. Liquid ring vacuum pump (water ring vacuum pump)
2, reciprocating vacuum pump
3, rotary vane vacuum pump
5,Piston Vacuum Pump
7, dry vacuum pump
8. Roots vacuum pump
9.Molecular vacuum pump
10. Traction molecular pump
11.Compound vacuum pump
12.Water jet vacuum pump
13. Gas injection pump
14. Steam jet pump
15. Diffusion pump, etc
Gas capture pump includes: adsorption pump and cryogenic pump.
At present, water ring vacuum pump and rotary vane vacuum pump are widely used in industry.
| Curve No. | Model | Max. suction capacity | Ultimate vacuum mbar(MPa) |
Motor power kW |
Speed r.p.m |
Operating liquidflow rate L/min |
Noise dB(A) |
Weight kg |
|
| m3/min | m3/h | ||||||||
| 60V | 2BV2-060 | 0.45 | 27 | 33mbar (-0.097MPa) |
0.81 | 2840 | 2.5 | 62 | 37 |
| 61V | 2BV2-061 | 0.86 | 52 | 1.45 | 2840 | 2.5 | 65 | 41 | |
| 70V | 2BV2-070 | 1.33 | 80 | 2.35 | 2860 | 3 | 66 | 66 | |
| 71V | 2BV2-071 | 1.83 | 110 | 3.85 | 2880 | 4.7 | 72 | 85 | |
| 110V | 2BV5-110 | 2.75 | 165 | 4 | 1440 | 7.2 | 63 | 120 | |
| 111V | 2BV5-111 | 3.83 | 230 | 5.5 | 1440 | 8.8 | 68 | 150 | |
| 121V | 2BV5-121 | 4.66 | 280 | 7.5 | 1440 | 11 | 69 | 210 | |
| 131V | 2BV5-131 | 6.66 | 400 | 11 | 1460 | 16 | 73 | 280 | |
| 161V | 2BV5-161 | 8.33 | 500 | 15 | 970 | 22 | 74 | 390 | |
| 110V | 2BV6-110 | 2.75 | 165 | 4 | 1440 | 67 | 63 | 150 | |
| 111V | 2BV6-111 | 3.83 | 230 | 5.5 | 1440 | 10 | 68 | 200 | |
| 121V | 2BV6-121 | 4.66 | 280 | 7.5 | 1440 | 12 | 69 | 230 | |
| 131V | 2BV6-131 | 6.66 | 400 | 11 | 1460 | 17 | 73 | 315 | |
| 161V | 2BV6-161 | 8.33 | 500 | 15 | 970 | 23 | 74 | 426 | |
| Models | 2XZ -2C | 2XZ-4C | 2XZ-6C | 2XZ-8C | 2XZ-15C | 2XZ-25C | ||
| Pump speed | 50HZ (L/s) | 2 | 4 | 6 | 8 | 15 | 25 | |
| 60HZ (L/s) | 2.4 | 4.8 | 7.2 | 9.6 | 18 | 30 | ||
| 50HZ (m3/h) | 7.2 | 14 | 22 | 29 | 54 | 90 | ||
| 60HZ (m3/h) | 8.6 | 17 | 25 | 35 | 65 | 108 | ||
| Ultimate pressure(Pa) | Partial pressure | 6×10ˉ² | 6×10ˉ² | 5×10ˉ² | 5×10ˉ² | 5×10ˉ² | 5×10ˉ² | |
| Total pressure | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Rotary speed(r/min) | 50HZ | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| 60HZ | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | ||
| Motor power(Kw) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 3.0 | ||
| Working voltage(v) | 220/380 | 220/380 | 380 | 380 | 380 | 380 | ||
| InletDiam(mm) | I.D. | KF-25 | KF-25 | KF-25 | KF-40 | KF-40 | KF-40 | |
| O.D. | ||||||||
| Dimensions(mm) | Length | 480 | 520 | 545 | 616 | 705 | 830 | |
| Width | 150 | 150 | 172 | 255 | 255 | 275 | ||
| Height | 200 | 200 | 285 | 360 | 360 | 440 | ||
| Noise(dBA) | 65 | 65 | 68 | 70 | 70 | 72 | ||
| Oil capacity (L) | 0.8 | 1 | 1.5 | 3 | 3.5 | 4 | ||
| G.W./N.W. (kg) | 22/20 | 26/22 | 55/46 | 70/60 | 86/75 | 105/85 | ||
