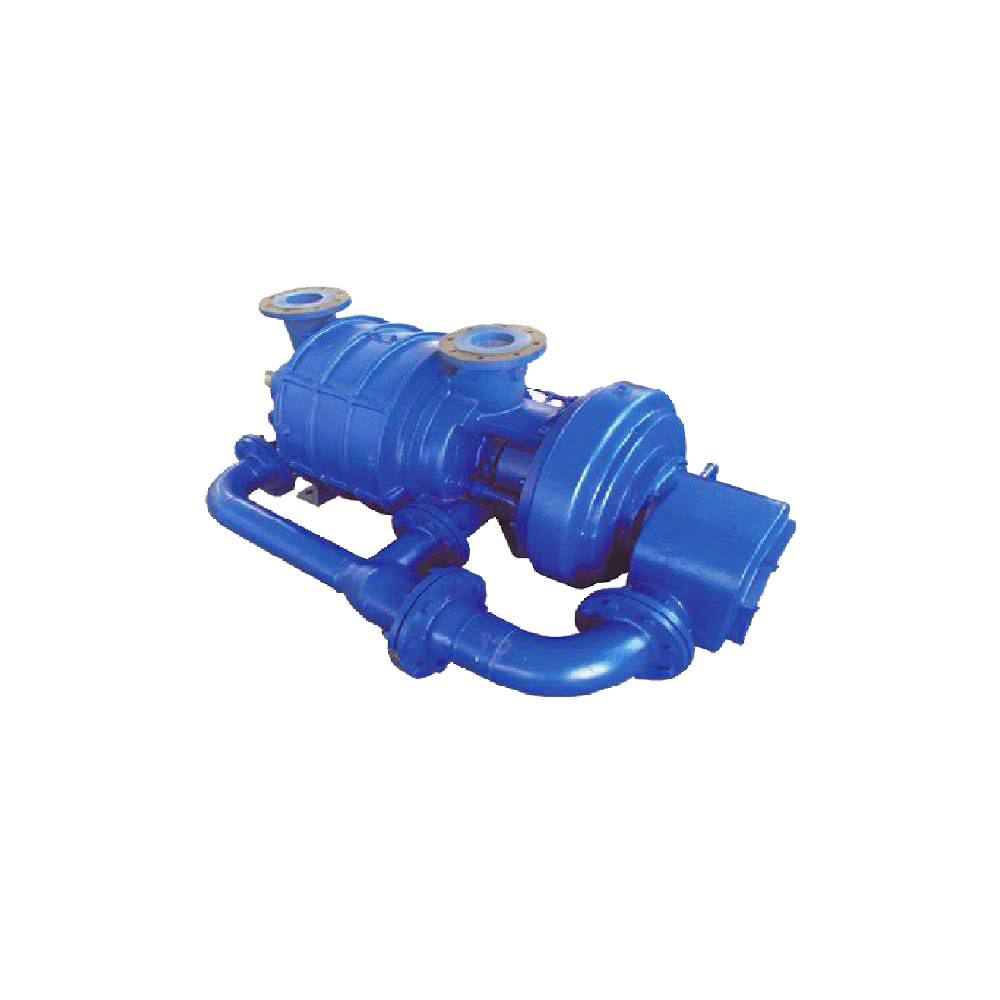

AT/TC series cone two stage water ring vacuum pump

Availability :
In Stock
Description: AT/TC series double stage cone type water ring vacuum pumps can condensate and take away the large amount of vapor from the process.
Email : contact@evpvacuum.com(your request will be responsed within 1 hour.)
Wechat : +86 13162688673
WhatsApp : +86 13162688673

Introduction:
AT/TC series cone type liquid ring vacuum pump adopts international advanced technology. It has one impeller but with double stage function, this can condensate and take away the large amount of vapor from the process; The pump is suitable to be used in bad working conditions to deal with high dust gases, dirty gases with soft fibre, gases contains liquid, hot gases, toxic or corrosives gases etc, in industries of power plant, petrochemical, paper making, coal mine etc.

Advantages:
1.Several installation points; driven by belt type elastic coupling.
2. The shroud on impeller blades makes it highly resistant to weariness and corrosion, stable and reliable.
3.Seal type is optional for different industries, such as packing seal, single end or double end ( cartridge type) mechanical seal.
4.Material is optional to fulfill bad working environment, such as carbon steel, stainless steel, duplex stainless steel, titanium etc.
5.Double stage design, small compression ratio, little temperature rise in high vacuum area, prevent cavitation effectively.

Application:

AT/TC series cone type double stage water ring vacuum pump are equipped with international brand motor, heat exchanger, valves, automatic control instruments etc, to integrate a safe, high efficiency, automatic operating vacuum system. They are widely used in power plant condenser vacuum, and for drying, evaporation, distillation, concentration, filtration, dehydration , degassing in industries of food, pharmacy, chemical, paper making etc.

Type Ultimate

vacuum

Speed Max Capacity Max Shaft

power

Motor

power

Inlet

diameter

Outlet

diameter

Water

Supply

hPa in.Hg r/min m³/h acfm kW hp kW hp mm in. mm in. m³/h
AT706 33 1 885 1000 590 23.1 31 30 40 100 4 80 3 3.3
980 1100 650 26.8 36 30 40 100 4 80 3 3.9
1050 1200 710 31.3 42 37 50 100 4 80 3 4.4
AT1006 33 1 690 1485 875 41.0 55 45 60 200 8 125 5 4.9
730 1615 950 43.3 58 55 75 200 8 125 5 5.2
880 1955 1150 58.2 78 75 100 200 8 125 5 5.8
980 2040 1200 71.6 96 90 120 200 8 125 5 6.2
TC11 33 1 450 2720 1600 70.8 95 90 120 200 8 150 6 9.1
500 3060 1800 85.8 115 110 150 200 8 150 6 9.5
550 3400 2000 95.4 128 110 150 200 8 150 6 10.1
590 3600 2120 104 140 132 180 200 8 150 6 10.5
AT2006 33 1 500 3010 1775 74.6 100 90 120 200 8 150 6 9.5
550 3310 1950 82.0 110 110 150 200 8 150 6 9.8
590 3570 2100 91.7 123 110 150 200 8 150 6 10.2
AT3006 33 1 400 3740 2200 104 140 110 150 250 10 200 8 10.5
450 4420 2600 127 170 160 215 250 10 200 8 11.2
500 4760 2800 157 210 185 250 250 10 200 8 12.5
