Brand: EVP
Classification: Vacuum Measurement And Leak Detection
Availability : In Stock

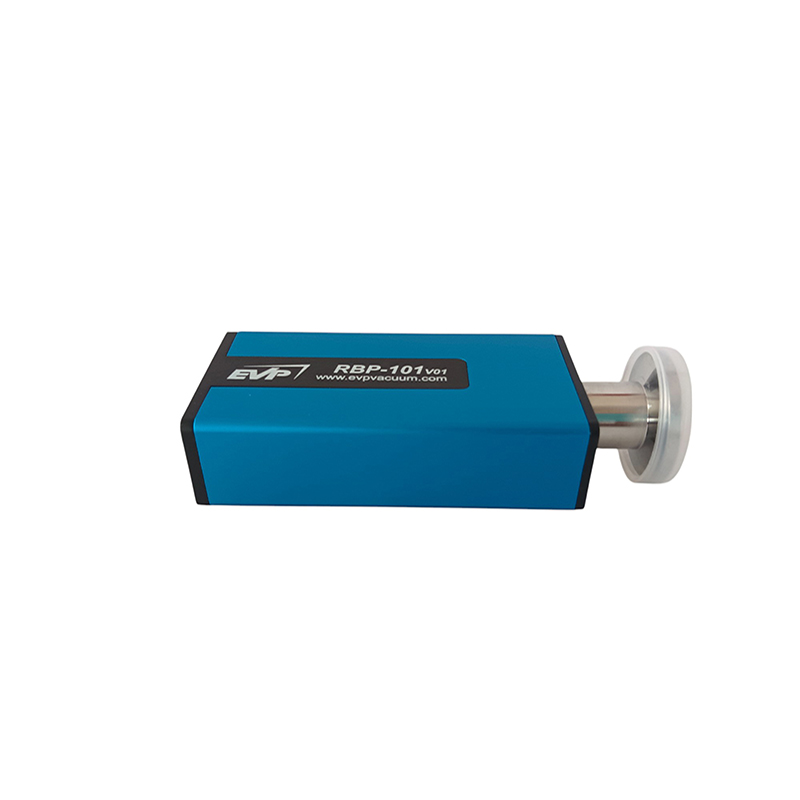

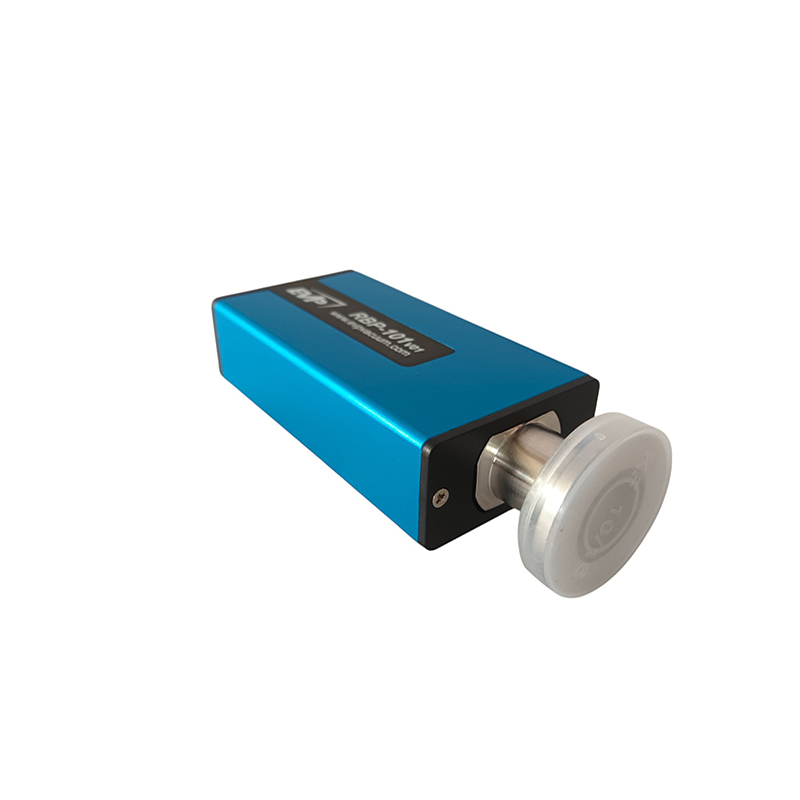

The RBP-101v01 gauge is an upgraded version of the RBP-101 gauge, which is used in much the same way, but the V01 series has changed in terms of housing materials and sensor components
| Model | RBP101v01 |
| Measuring Range: | 1×10-2 ~ 1×105Pa |
| Output Voltages: | 0.50 ~ 10.00V |
| Effective Accurate Voltage: | 1.00 ~10.00 V |
| Accuracy (N2) : | 5×10-1—3×103 Pa ≤ ±30% (of reading) |
| 1×10-1—5×10-1 Pa ≤ ±50% (of reading) | |
| 3×103—1×105 Pa ≤ ±50% (of reading) | |
| Errors obtained after calibration, other ranges are for reference only. | |
| Power: | 24±20%V/DC 5W |
| Installation: | Vertical installation is recommended. |
| The standard interface of this transmitter is DN10/16KF . Other interfaces, please consult our company. | |
| False Signal: | 0 – 0.5 V (filament break) |
| Output Impedance: | 27.0Ω |
| Device connectors: | FCC 68/RJ45, network cable. |
| Output formulas: | P=10((U-3.572)/1.286) |
| P unit: Pa U unit: V | |
| Special requirement: P=10(U-3.5) | |
| Special effective voltage output: 2.5-8.5 V | |
The RBP-101v01 gauge is an upgraded version of the RBP-101 gauge, which is used in much the same way, but the V01 series has changed in terms of housing materials and sensor components, and more improvements have been made to the internal circuitry to make it more conducive to low vacuum measurement and control. The resistive vacuum gauge is encapsulated in a rugged, compact tube housing. Temperature compensation provides the fastest and most stable vacuum measurement and eliminates the problem of slow response to atmospheric pressure. The rugged stainless steel sensing unit is suitable for use in semiconductor systems as well as for general purpose applications such as in pre-coater vacuum lines.
