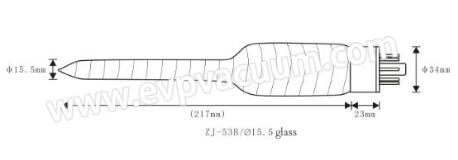

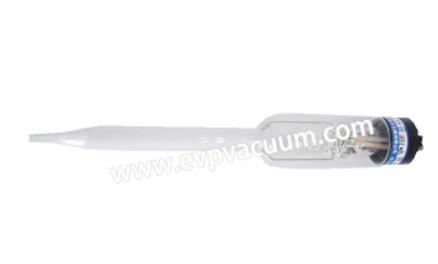

Type NO. : ZJ-53B thermocouple vacuum gauge
Type the regulations made after stabilizing treatment, heat capacity of tiny nickel chrome – constantan as a heating wire and the thermocouple wire, with ambient temperature automatic compensation and dust prevention functions. With simple structure, wide range, rapid response, pollution resistance, oxidation resistance, drift small, long life, stable performance, price moderate, etc. Especially used in low vacuum measurement.
Main technical parameters:
1. Measurement range: 400-1×10-1pa
2. Heating current :28±1.5mA
3, the resistance to hot wire ling: 9.5 + / – 1 Ω (23 + / – 3 ℃)
4. Hot wire temperature: 40-150 ℃
5. Scattered: no more than ±20%
6. Vacuum connection form and baking temperature:
Ф pipe is 15.5 + / – 0.5 80 ℃
Ф 15.5 + / – 0.1 metal straight tube 80 ℃
KF10 quick discharge flange 80℃
KF16 quick discharge flange 80℃
KF25 quick discharge flange 80℃
KF40 quick discharge flange 80℃
CF16 ultra high flange 450℃
CF25 ultra high flange 450℃
CF35 ultra-high flange 450℃
Vacuum gauge classification
1. Thermocouple gauge
At present, the main domestic thermocouple gauges 51 series, 53B/54D and so on. Mainly used for low vacuum measurement.
2. Pirani Series (Resistance regulator)
At present domestic resistance gauge model is mainly 52T series. Mainly used for coarse and low vacuum measurement.
The PG-500 is used with the watch head
Pg-600 communication digital signal directly connected to the PC
Pg-700 switch can directly set the control point for control
3. Hot cathode regulator
The main models are ZJ-2 series, ZJ-10 series, ZJ-27 series, B-A gauge and so on.
This type of regulator is mainly used for high vacuum measurement.
Our factory is specialized in designing, producing, selling and serving vacuum gauge and vacuum regulation. We have many years experience in designing and manufacturing vacuum gauge. If you need special specifications or customized vacuum gauge products, please contact us.
If possible, kindly suggest please your working industry/process, working pressure, working medium, etc. Given detailed request helps to gain better-matched customized solution. Thanks for your patience.
your request will be responsed within 3 hours, kindly pay attention to your email please.
