KF clamp assembly

Vacuum clamp is a kind of convenient fastener for quick connection of vacuum pipe.

Vacuum clamp (also known as clamping type vacuum quick release flange, see gb4982-85)

Vacuum clamp is divided into stainless steel and aluminum alloy according to the material.

The stainless steel material is made by advanced casting technology. After the blank is precision cast, it passes through the vibration light place, and then it is assembled. After the assembly is completed, the second polishing treatment is carried out, and then it is packaged and sold.

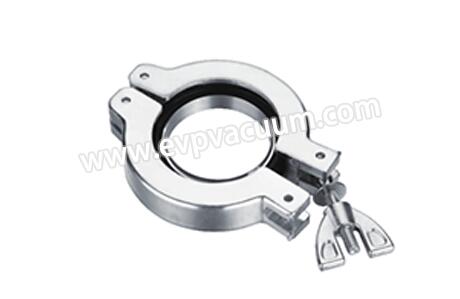

KF clamp assembly

Size:

KF clamp assembly size

Product specification:

Size

A

B

C

KF10/16

62.3

41

16.5

KF25

72.4

54

16.5

KF40

89.7

69

16.5

KF50

114

90

21.50

The vacuum parts belong to the connecting parts of pipes, pumps and valves of vacuum devices. In the application of vacuum system, there is no uniform standard due to different service conditions and regions, so it is necessary to specify which standard to adopt.

Usually, we have to consider the following conditions:
a. What standard is adopted.
b. High vacuum or ultra-high vacuum is required.
c. Temperature resistance of pipeline.
d. Whether the working environment is corrosive.
e. Whether the replacement is convenient.

At present, vacuum parts are divided into the following three types:
NW series: more commonly used in American standards
KF series: specifications specified by international standards organization
ISO series: specifications specified by ISO

The company’s vacuum parts, all use Japanese CNC machine tools for processing. We will provide customers with high quality, low cost, fast delivery time of three standard series of vacuum parts, special requirements of vacuum parts and other vacuum equipment accessories to meet customer requirements.
