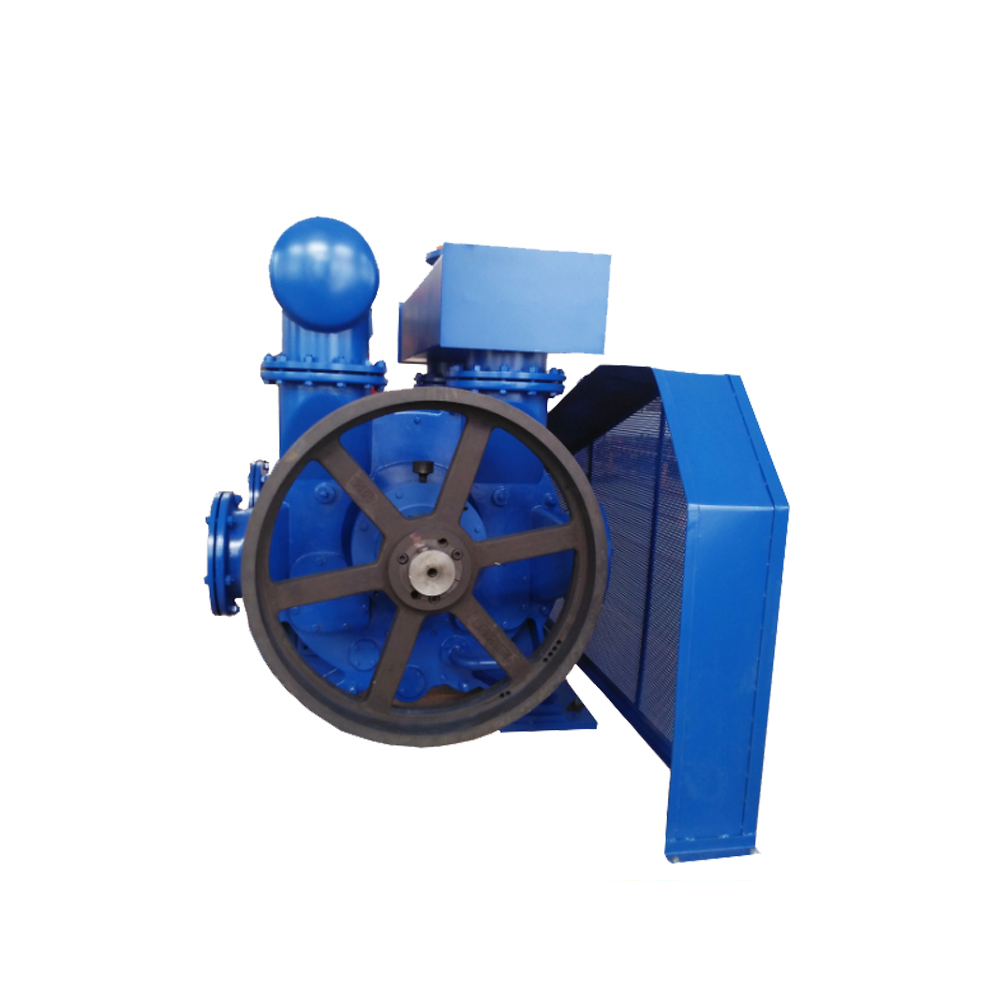

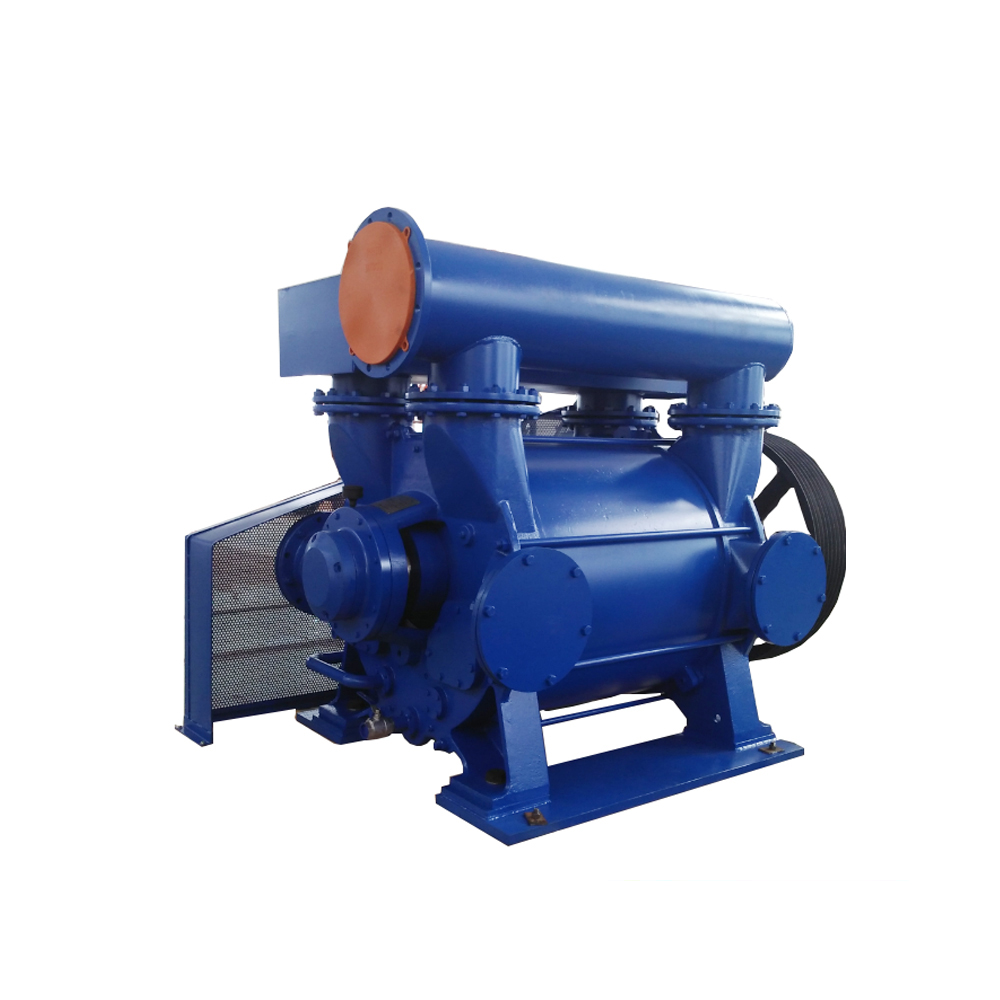

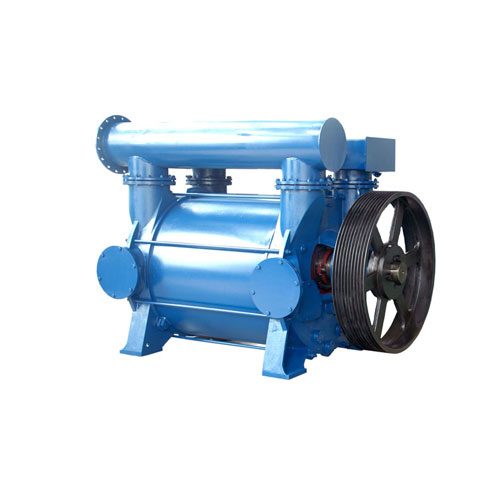

2BE series compressors

Availability :
In Stock
Description: The liquid ring vacuum pumps and compressors of 2BE series are high-efficient and energy-saving products developed by our company on the basis of our scientific achievements
Email : contact@evpvacuum.com(your request will be responsed within 1 hour.)
Wechat : +86 13162688673
WhatsApp : +86 13162688673

The liquid ring vacuum pumps and compressors of 2BE series are high-efficient and energy-saving products developed by our company on the basis of our scientific achievements and production experiences over the years combining with the advanced international technique of similar products. They are usually used to suction the gas without solid particle, undissolved and noncorrosive gas in order to form negative pressure in the closed container. By changing the fluid parts material, they can also be used to suction corrosive gas or use corrosive liquid as operating liquid such as the PPS thermal spray coating obtained national patent.

These single-stage and single-acting pumps are simple in structure, convenient in maintaining, reliable in operating, efficient and energy-saving. They can run under tough working conditions with large drainage discharge and changing load impact. 2BE vacuum pumps adopt unique flexible discharge structure for their exhaust systems. Each valve plate is covered on vents in outer side of a port plate and fixed by a stainless steel baffle at its other side. Curvature of the valve plate changes with inlet pressure so that pumping medium can be discharged when it reaches the inlet pressure. Such structure avoids over-compression in a vacuum system and automatically adjusts exhausting area to lower power consumption, thus a best operating efficiency can be obtained.
2BE series products are applied in the chlor-alkali industry mainly to hydrogen compressor package unit of ion-exchange membrane caustic soda, acetylene compressor package unit of PVC and exhaust gas recycle vacuum pump etc.

Specifications of water ring compressor complete unit

Water ring compressor package unit are large complete equipment developed on the basis of water ring compressor. The main pump is equipped with advanced 2BE、2SY series water ring compressor and can provide aspiring system, water system of cooling and recycle seal liquid, gas and liquid separator, instruments and meters, security alarms device and pipe valves etc. according to different using requirements. The electrical control can set several functions such as manual operation, semi-automatic or full-automatic remote control. By experiments, the large complete equipment is verified to have the ability to pumping gas under various kinds of complicated working conditions and excellent performance, meanwhile can fully ensure clients’ requirements.
2BE、2SY series water ring vacuum compressors are high-efficient and energy-saving products developed in the 1990s by our company on the basis of our scientific achievements and production experiences over the years combining with the advanced international technique of similar products.
The products are tested by national vacuum equipment quality supervision and inspection center. All the performance reaches or exceed design demand and appraised by experts, our products reach the international advanced level.

The outstanding characteristics and advantages:

The impeller material is qualified steel plate, and the blades are shaped once by stamping. The inside and outside of the wheel hub conduct machining and adopts welding process. The whole impeller conducts thermal treatment and has good balance. Therefore the problem of dynamic and static balance is solved fundamentally. Our impeller has high strength, good toughness, abrasion resistance, never broken, impact and bent resistance etc. advantages and reaches international advanced level.

According to different process, the fluid parts of the compressor can adopts many kinds of material, such as SS304, SS316 and treatments(spray coating treatment) to improve the capability of being suitable for working environment. The corrosion, washing, erosion resistance ability and anti-scale deposit ability are further enhanced.
The position of the impeller reinforce rib is away from the end face. The end face of the blades on the port plate surface scrapes the sundries between them off like a scraper in case that the sundries scale between the impeller and port plate and of the wear of port plate. The sudden shut off phenomenon can be avoided as well.

The optimization design of the port plate and molded lines of the impeller improve the stream guidance effect, enlarge the suction and discharge volume and brings high efficiency and simple structure. Therefore it barely need repair and maintenance.

Adopting wear-proof stainless steel shaft sleeve and ensure the shaft away from wear.

Shaft end of the compressor adopts reliable seal mode——mechanical seal, which can avoid leakage of operating liquid and pump gas efficiently.
Foreign import bearing has stronger bearing capability , accuracy position and service life over two hundred thousand hours, which ensure the reliability of compressor’s long term operation.

Compressor and attached device can be manufactured with ordinary or special material according to different medium.

The coupling is fixed with removable strong steel closed shield which is fastened into the bottom plate firmly.

The design and structure of each electric motor coordinate with electrical system driven device and operation maintenance. The motor is damp-proof closed.

All the equipments, including the support have capability to bear completely the force and moments of the force passed from the users connecting pipe ports.

The cooling device of the operating liquid is set according to the specific working condition and pumping capability of the compressor. Adopting heat exchanger with high efficiency and convenient repair and maintenance. The heat exchanger adopts plate type generally and the plates adopt SS304 stainless steel. Thus the closed cycle of operating liquid is achieved and save the consumption of the water.

According to the demand of working condition, the gas and liquid separator is generally provided which can separate the pumping gas efficiently and recycle operating liquid. Meanwhile, the liquid cooled by heat exchanger can replenish the recycle of operating liquid. The gas is discharged to specified place via the outlet of the separator. It’s specially suitable for pumping flammable, explosive and poisonous gas. The reliable automatic water replenishing and drainage device is correspondingly installed.

The liquid level meter in the separator that can display is magnetic flap type to be controlled by electrical magnetic valve or mechanical high-low liquid level switch. There is a DCS interface which is safe and reliable.

The package unit is provided with operating liquid drain-off pipes. When the package unit is shut down, the accumulated liquid can be drained off to specified place according to environmental requirement.

According to the process demand, the control of the electrical motor and the butterfly valve of the inlet can be set via DCS. To monitor, control and interlock all the control objects and other related systems as well as protect signal can access to DCS.

According to the process demand, the whole instrument measure and control device can be provided to make sure reliable test and control capability. The exact action of the high-low water level switch and reliable output interface can make the water ring vacuum pumps operate safely and reliably and ensure the package unit to work stable with high efficiency.

The compressor and all the accessories are supplied in complete and are installed on the same foundation support with all the accessories assembled well. Meanwhile the foundation support is set special drainage device in case of accumulated water.

Speed
(Driving mode)[r/min]
Max. shaft power

[KW]

Motor power

[KW]

Max.  Capacity

[m3/h]    [m3/min]

Ultimate vacuum

[mbar]

Weight (excl.motor)

[Kg]

2BE3- 40 300 (V-belt / gear box) 64.8 6-75 4200 70 160 4050
330 (V-belt / gear box) 75 6-90 4650 77
350 (V-belt / gear box) 86.5 110 4680 81
390 (V-belt / gear box) 99 110 5460 91
430 (V-belt / gear box) 117 132 6000 100
498 (V-belt / gear box) 135 160 6900 115
530 (V-be t / gear box) 148 185 7440 124
570 (V-belt / gear box) 167 200 8000 133
2BE3- 42 300  (V-belt / gear box) 100 6-110 5850 97.5 160 4200
350  (V-belt / gear box) 109 132 6300 105
390  (V-belt / gear box) 133 160 7650 127
449  (V-belt / gear box) 157 185 8550 142
490  (V-belt / gear box) 180 200 9200 154
530  (V-belt / gear box) 200 220 10100 168
570  (V-belt / gear box) 225 250 10600 177
2BE3- 50 236  (V-belt / gear box) 128 160 7500 125 160 6000
266  (V-belt / gear box) 140 160 8500 142
300  (V-belt / gear box) 173 200 10000 167
336  (V-belt / gear box) 235 250 11400 190
366  (V-belt / gear box) 261 280 12500 208
420  (V-belt / gear box) 278 315 13700 228
2BE3- 52 236  (V-belt / gear box) 168 185 9000 150 160 6500
266  (V-belt / gear box) 175 200 10560 176
336  (V-belt / gear box) 260 280 13800 230
366  (V-belt / gear box) 285 315 15000 250
421  (V-belt / gear box) 331 400 16800 280
468  (V-belt / gear box) 416 500 18450 307
2BE3- 60 236  (gear box) 204 250 11820 197 160 8900
265  (gear box) 243 280 14200 236
295  (gear box) 285 315 15900 265
340  (gear box) 365 400 17400 290
370  (gear box) 386 450 19400 323
2BE3- 62 200  (gear box) 195 250 13200 220 160 92500
230  (gear box) 260 315 15180 253
266  (gear box) 300 355 17300 288.3
297  (gear box) 348 400 19300 322
330  (gear box) 395 450 21300 355
372  (gear box) 490 560 24000 400
2BE3- 67 180  (gear box) 250 315 14500 242 160 12200
210  (gear box) 285 315 18000 300
270  (gear box) 415 450 22800 380
300  (gear box) 465 560 25800 430
330  (gear box) 545 630 27720 462
370  (gear box) 670 800 30960 516
2BE3- 72 190  (gear box) 338 400 20100 335 160 15000
210  (gear box) 395 450 23760 396
240  (gear box) 475 560 27000 450
270  (gear box) 550 630 30000 500
300  (gear box) 642 710 33600 560


2BE3-80N





190  (gear box) 507 560 30000 500 160 19000
210  (gear box) 585 630 32280 538
240  (gear box) 710 800 36600 610
270  (gear box) 849 900 40800 680
300  (gear box) 796 10000 44800 748
2BE3-90N



170  (gear box) 570 630 39000 650 160 24500
195  (gear box) 730 800 46800 780
210  (gear box) 815 900 49800 830
230  (gear box) 925 1000 52800 880
245  (gear box) 1035 1120 55800 930
2BE3-100N



155   (gear box) 730 800 48000 800 160 31000
165   (gear box) 840 900 51300 855
175   (gear box) 900 1000 54000 900
190   (gear box) 995 1120 59400 990
200   (gear box) 1146 1250 62400 1040
