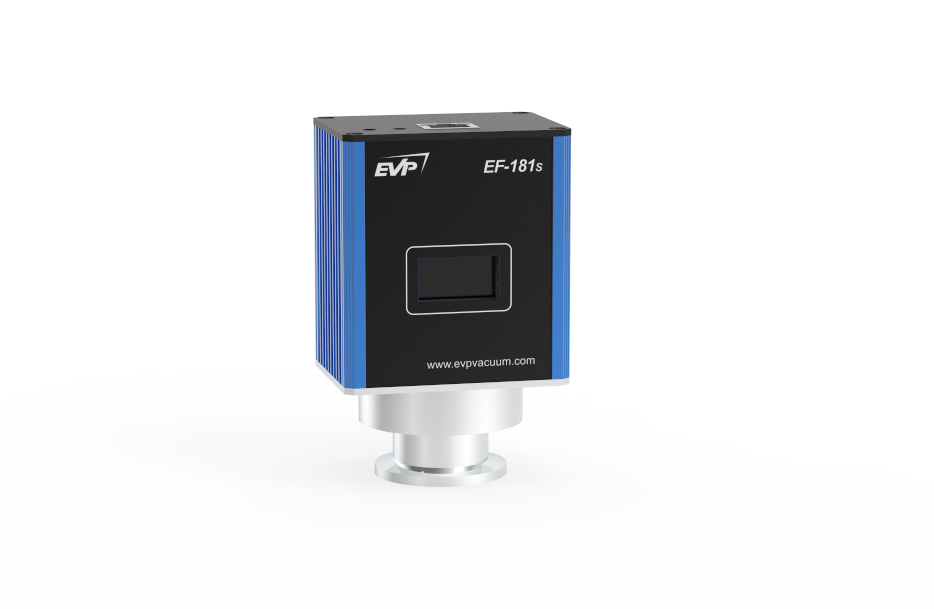

The RBF181 is a composite vacuum transmitter with an integrated Pirani, cold cathode ionization sensor. The measurement range is 5.0×10-6Pa to atmospheric pressure (5.0 ×10-8mbr to atmospheric pressure). Combining multiple technologies into a single
| Specification | ||
| Model | RBL100 | RBF181 |
| Measure Range | 5.0×10-6 ~ 1.0Pa | 5.0×10-6 ~ 1.0×10+5Pa |
| Precision (N2) | ±50 % | ±50 % |
| 5.0×10-6 ~ 1.0Pa | ±10 % | ±10 % |
| Installation site | vertical installation | vertical
installation |
| Absolute pressure | 10 bar(Only noble gases) | ≤10 bar(Only
noble gases) |
| Temperature | ||
| Operating environment | +10 ~ +50℃ | +5 … +55℃ |
| stock | +10 ~ +50℃ | -40 … +65℃ |
| Bake(1) | 350℃ | 150℃ |
| With electronic components, baked in flange | 70℃ | / |
| Single filament temperature | / | 120 °C |
| Status | |||||
| Pirani mode only | _____ | 0V | |||
| Pirani/cold cathode mode | +15V … +30V | +15V … +30V | |||
| Status | |||||
| LED | Light when working under high pressure | Light when working under high pressure | |||
| (Pirani) | |||||
| Voltage | ||
| Vacuum gauge | +16VDC … +30VDC | +16VDC … +30VDC |
| Power ripple | ≤1V(p-p) | ≤1V(p-p) |
| Power Consumption | ≤12W | ≤12W |
| Reachable fuse | ≤1A | ≤1A |
| Output signal
(measurement signal) |
||
| Voltage range | 0 … +10.5V | 0 … +10.5V |
| Measuring range | +1.82 … +8.6V | +1.82 … +8.6V |
| Voltage and pressure | 1.333 volts per decade | 0.6 volts per decade |
| Error signal | ||
| Non-transformer
Pirani sensor, monofilament broken |
＜0.5V | ＜0.5V
>9.5V |
| Output resistance | 2×10Ω | |
| Min load resistance | 10kΩ(short-circuit
protection) |
|
| Response time | ||
| p＞10-4mbar | ＜10ms | ＜10ms |
| p = 10-6mbar | ≈ 1000ms | ≈ 1000ms |
| Identification vacuum
gauge |
100kΩ(Pull resistance to the ground) | 85kΩ(Pull resistance to the ground) |
| Electrical connection | FCC 68, female, 8 pin | FCC 68, female, 8 pin |
| Sensor cable | 8pin , with shield | 8pin , with shield |
| Cable Length,
Max. (analog) |
≤50m(8×0.14mm2) | ≤50m(8×0.14mm2) |
| Operating voltage | ≤3.3kV | ≤3.3kV |
| Operating current | ≤750μA | ≤750μA |
| Material exposed
to vacuum |
Al2O3,FPM75, Mo, Ni, Au,W | Al2O3,FPM75, Mo,Ni,A u,W |
| Weight | 500g | 500g |
| Drawing as below |
(1) Without electronic and magnetic shielding.
RBL100 is a high vacuum type cold cathode ionization vacuum transmitter. Measuring range is 5.0×10-6Pa to 1.0Pa(5.0×10-8mbr to 1.0×10-2mbr)
The RBF181 is a composite vacuum transmitter with an integrated Pirani, cold cathode ionization sensor. The measurement range is 5.0×10-6Pa to atmospheric pressure (5.0 ×10-8mbr to atmospheric pressure). Combining multiple technologies into a single
compact unit with a logarithmic analog output signal greatly reduces installation, setup and integration complexity.
Features
Composite vacuum gauge – inverted magnetron and Pirani
Wide measurement range
Excellent ignition properties
Easy to clean
FPM or metal seal feedthrough
High voltage LED indicator
Logarithmic analog output signal
