Brand: EVP
Classification: Vacuum Measurement And Leak Detection
Availability : In Stock

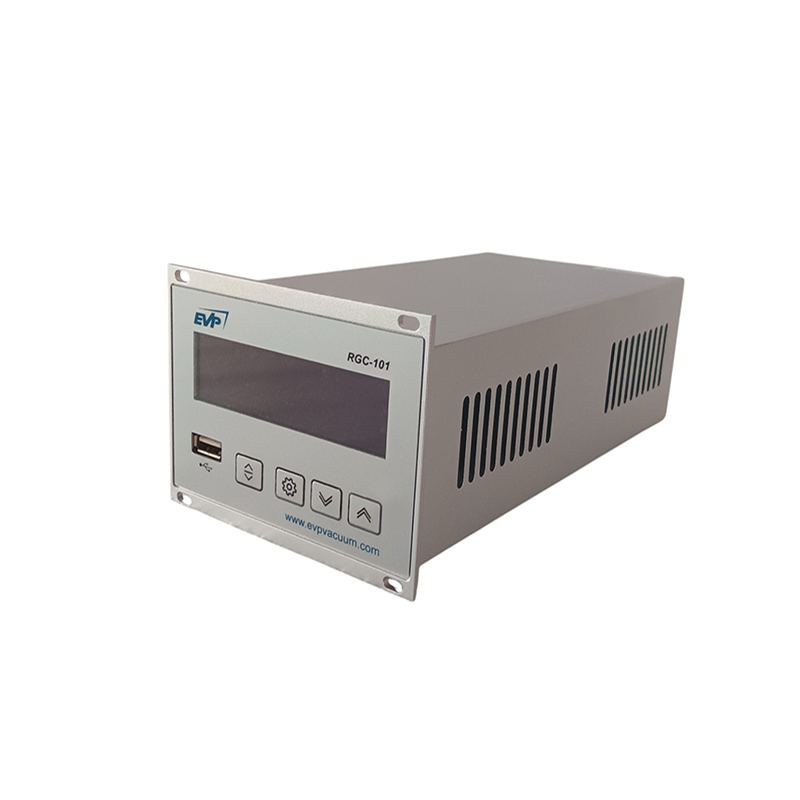

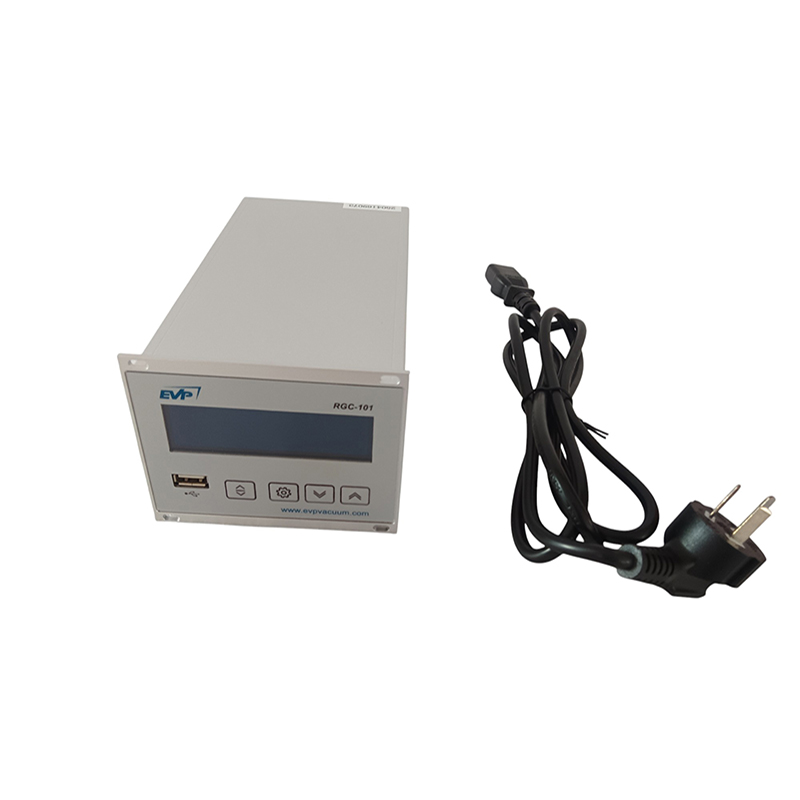

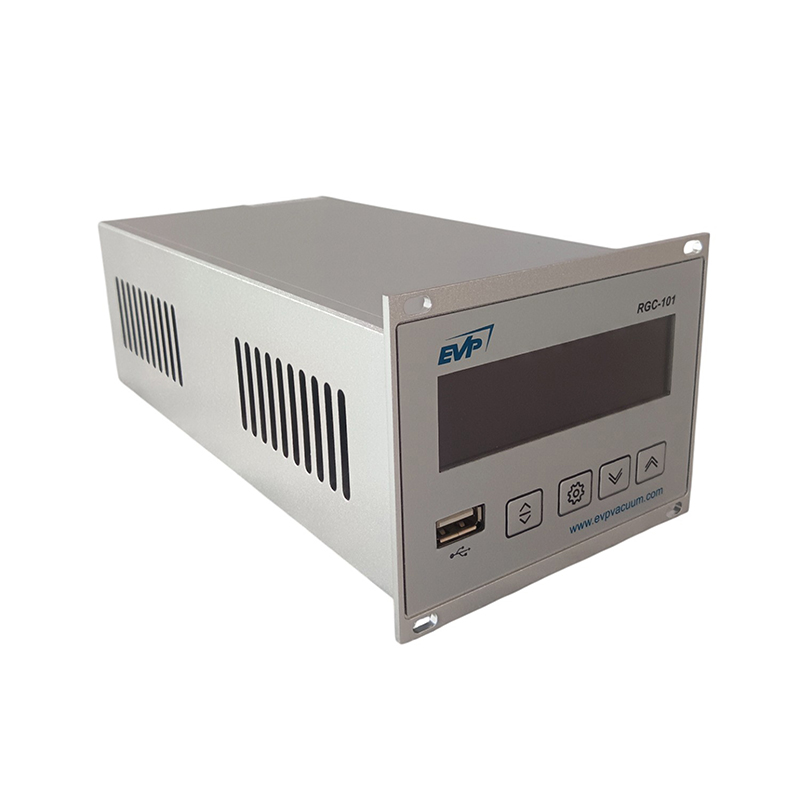

The RGC series vacuum controller can identify Pirani transmitters, Pirani/capacitor transmitters, cold cathode transmitters, cold cathode/Pirani transmitters, hot cathode/Pirani transmitters, hot cathode/capacitor/Pirani transmitters, and capacitor transmitters.
| ● Power supply | ||
| Voltage | +24VDC、±5%、Vpp ≤ 0.5V | |
| Current | Max: 1A/channel | |
| Overcurrent protection | 1.5A、self-recovery PTC fuse | |
| Total Power | ≤ 60W | |
| ● Operating power | Operating Voltage | 130 ~ 240VAC |
| Operating frequency | 50 ~ 60Hz | |
| Overvoltage rating | II | |
| Protection level | IP30 | |
| ● Working environment | ||
| Storage Temperature | -40℃ ~ 65℃ | |
| Working Temperature | 10℃ ~ 45℃ | |
| Relative humidity | ≤ 75%, temperature ≤ 31°C | |
| Use environment | Indoor only, altitude ≤ 2000m | |
| Protection class | IP30 | |
| ● Manipulation | ||
| Local control | Via four buttons | |
| Remote control | Via “USB-B” interface | |
| ●Measurement data | ||
| Measuring range | Dependent on connected transmitters | |
| Measurement Error | ||
| Fullness Error | ≤ 0.01% F.S. (typical)
≤ 0.1% F.S. (full temperature, long time) |
|
| Zero Offset | ≤ 0.005% F.S. (typical)
≤ 0.02% F.S. (full temperature, long time) |
|
| Measurement rate | 10/S (per channel) | |
| Display rate | 5/S | |
| Filter constant | ||
| OFF | nil | |
| Fast | 200mS(fg = 0.8Hz) | |
| Normal | 800mS(fg = 0.2Hz) | |
| Slow | 8S(fg = 0.02Hz) | |
| Data unit | mBar、Torr、Pa、Micro、HPa、KPa、V | |
| Zero Compensation | Valid for linear transmitters | |
| Linearity Compensation | 0.100 ~ 10.00 | |
| Analog/Digital Conversion | Resolution 0.001% F.S. | |
| ● Output control | ||
| Number of control channels | ||
| RGC-103 | 6-way | |
| Control hysteresis | ≤ 100mS | |
| Control range | Connection-dependent transmitter | |
| Release backlash | ||
| ≥ 1% F.S. (linear transmitter) | ||
| ≥ 10% F.S. (logarithmic transmitter) | ||
| Actuator | Relay | |
| Contact form | Normally open, normally closed, three contacts | |
| Contact resistance | ≤ 100mΩ | |
| Contact material | AgNi, AgSnO2 | |
| Contact load (resistive) | 3A, 30VDC | |
| 1A, 125VAC | ||
| Mechanical life | 1×107 times | |
| Electrical life | 1×105 times (3A, 30VDC) | |
| Connection Port | DB25, Hole Holder | |
| ● Fault protection | Number of control paths | 1 way |
| Control hysteresis | ≤100mS | |
| Actuator | Relay | |
| Contact Form | Normally open, normally closed, three contacts | |
| Contact resistance | ≤ 100mΩ | |
| Contact material | AgNi, AgSnO2 | |
| Contact load (resistive) | 3A, 30VDC | |
| 1A, 125VAC | ||
| Mechanical life | 1×107 times | |
| Electrical life | 1×105 times (3A, 30VDC) | |
| Connection Port | DB25, Hole Holder | |
| ● Output voltage | Number of Outputs | |
| RGC-103 | 3-Way | |
| Output range | -5V ~ +14.5V (DC) | |
| Display value difference | ±20mV | |
| Output impedance | < 50Ω | |
| Output voltage-pressure | Connection-Dependent Transmitter | |
| Connection port | DB9, Pin Header | |
| ● Analog output | Number of output channels | |
| RGC-103 | 1 Way | |
| Output Range | 0V ~ +10V (DC) | |
| Resolution | 1mV | |
| Accuracy | ±20mV | |
| Output Impedance | < 50Ω | |
| Output Voltage-Pressure | Connection dependent transmitter | |
| Connection Port | DB9, Pin Header | |
| ● USB-A port | Connection Protocol | FAT file format |
| ● USB-Bport | Connection Protocol | ASCII file format |
| Data format | Virtual Serial Port | |
| Communication rate | 1-bit start, 1-bit stop, 8-bit data, no parity, no handshake | |
| ● Overall weight | 9600、19200、38400 | |
| ● Overall Dimensions | Width, Height, Length | 1Kg |
The RGC series vacuum controller can identify Pirani transmitters, Pirani/capacitor transmitters, cold cathode transmitters, cold cathode/Pirani transmitters, hot cathode/Pirani transmitters, hot cathode/capacitor/Pirani transmitters, and capacitor transmitters. In terms of display, OLED display is adopted, which offers good visual effects and excellent texture. All the Settings are more in line with the operation habits of users, clear and concise.
