Brand: EVP
Classification: Vacuum Measurement And Leak Detection
Availability : In Stock

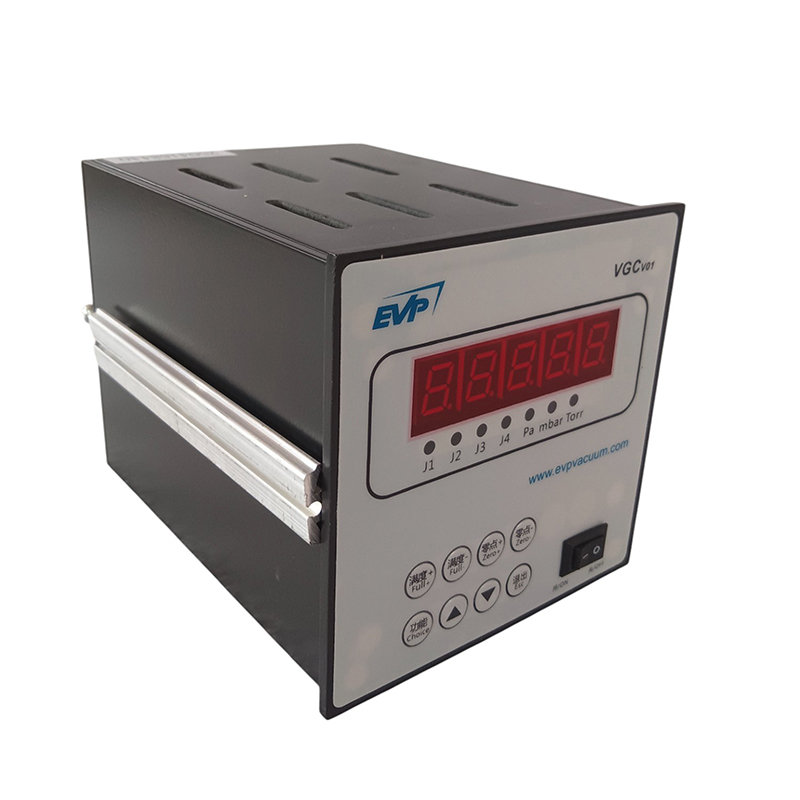

VGCv01 vacuum controller adopts high-precision analog-to-digital converter to collect data, and uses single-chip microcomputer system to carry out nonlinear processing and error correction on the collected data, so it has higher accuracy and is one of the ideal instruments for low vacuum and high vacuum measurement.
| 1 | display mode | Scientific counting method (5 digits) |
| 2 | Display digit | 3 significant bits |
| 3 | measuring range | According to the equipped transmitter |
| 4 | zero drift | ±1% |
| 5 | Adapter transmitter | EVP |
| 6 | Using power supply///Rated power consumption | AC/50Hz/220V±10%///20W |
| 7 | Net weight of instrument | < 1Kg |
| 8 | operational environment | Temperature: -10 to 50℃ Humidity: < 90% |
Function:
| 1 | control range | According to the equipped transmitter |
| 2 | Control mode | Two-way point control or area control (extensible) |
| 3 | Output capacity | AC/220V/3A non-inductive load |
| 4 | Control accuracy///control time | ±1%///< 1S |
| 5 | Analog output (optional)///output accuracy | 0-5V/4-20mA///±2% |
| 6 | Communication interface (optional) | RS232/RS485 |
VGCv01 vacuum controller adopts high-precision analog-to-digital converter to collect data, and uses single-chip microcomputer system to carry out nonlinear processing and error correction on the collected data, so it has higher accuracy and is one of the ideal instruments for low vacuum and high vacuum measurement.
Features:
A．digital filtering and photoelectric isolation technology are adopted, which has high measurement accuracy and anti-interference ability.
B．two or four groups of control signals output, and there are indicator lights.
C．Extensible functions: communication, control output and analog output.
D．nonlinear compensation and error correction are carried out by adopting a single-chip microcomputer system, and the measured pressure is digitally displayed in the whole process, with automatic gear shifting and multiple control function outputs.
E．The setting of “full scale” and “zero point” potentiometers on the front panel ensures the use accuracy and convenient adjustment of the instrument and supporting transmitter.
