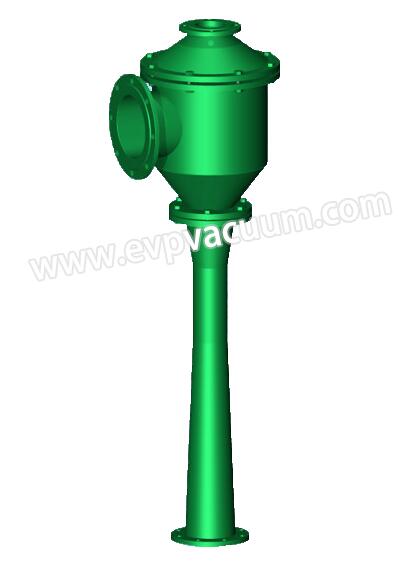

SP (FSP) type water jet vacuum pump

New generation patent new products (including SP common type and FSP anti-corrosion type, vertical and horizontal types).

SP (FSP) type water jet vacuum pump

1、 Overview:
The ZSL series jet vacuum pump with low position and large suction capacity has been put on the market for more than 30 years and has been used in more than 30 industries and more than 20 fields. Especially in the pharmaceutical, chemical, brick, grease and other industries to replace the water ring vacuum pump, mechanical vacuum pump, has its incomparable advantages, enjoys a high reputation among users. On the basis of the original ZSL series jet vacuum pump, the new generation of SP series water jet vacuum pump and FSP anti-corrosion water jet vacuum pump are carefully designed and developed. The pumping capacity is increased, the performance is more stable and advanced, and the water jet vacuum pump is further advanced.

2、 Sp (FSP) water jet vacuum pump is used to replace imported water ring vacuum pump and W mechanical vacuum pump
The piston of reciprocating vacuum pump is a running part, so the wear of piston is unavoidable. With the increase of maintenance times, the vacuum degree will decrease continuously until it can not meet the requirements of production. Its work noise is big, the oil consumption is big, the breakdown rate is high, generally needs to open one standby one, this virtually increases the equipment investment and the operation cost. In addition, if it is used to pump water vapor and other gases, the lubricating oil will be emulsified. Therefore, it can only be used to pump non condensable (air type) gas, nor can it be used to pump granular media. Although the water ring vacuum pump can directly pump condensable gas such as steam, its working vacuum degree is low, it can’t pump granular medium, and it is not easy to do anti-corrosion treatment. Water jet vacuum pump can directly pump condensable gas such as steam, granular medium and corrosive medium. Water jet vacuum pump is widely used in various industries instead of imported water ring vacuum pump and mechanical vacuum pump because of its advantages of water saving, power saving, oil saving, simple structure, convenient operation, no running parts and small maintenance.

3、 Corrosion resistance of FSP anticorrosive water jet vacuum pump:
Water jet vacuum pump is based on the fluid jet with a certain pressure to eject the pumped medium to achieve the purpose of vacuum pumping. There are no moving parts, so it is easy to be made of anticorrosive material. The main materials of FSP series anti-corrosion jet vacuum pump researched and manufactured by our company include carbon steel lining fluoroplastic type, stainless steel type, glass fiber reinforced plastic type, polyethylene type, polypropylene type, etc. Users can choose to use according to different media, temperature, concentration, working pressure, pumping volume and other technical parameters.

medium Concentration Temperature Soaking time Corrosion medium Concentration Temperature Soaking time Corrosion
sulfuric acid

98

boiling

96 hours Test board

Soak in

No rot

Erosion

Citric acid

20

boiling

96 hours The test board was not rotted after soaking in the medium

Erosion

hydrochloric acid

35

boiling

96 hours oxalic acid

20

boiling

96 hours
Nitric acid

50

boiling

96 hours Hydrofluoric acid

30

boiling

96 hours
Phosphoric acid

98

boiling

96 hours Caustic soda

10

boiling

96 hours
