Molecular pumps may involve different installation methods during the use of the unit, so can all molecular pumps be installed at any angle?

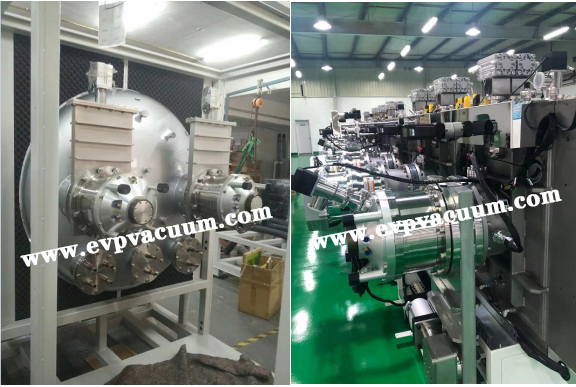

Our molecular pumps FB-300 (300L/s), FB-650 (650L/s), FB-1300 (1300L/s), FB-2000 (2000L/s) can be either air-cooling or water-cooling, even when they are water-cooling they can all be installed at any angle, including side-mounted and inverted, as shown in the following pictures:
But FB-600 (600L/s), FB-1200 (1200L/s), FB-1600 (1600L/s), FB-3600 (3600L/s) can only be installed vertically (small deviation within 5° is allowed) , can not be flipped, can not be side mounted. Assuming that the customer’s equipment manufacturer needs these pumps, there are two ways to deal with it:
1) Install the molecular pump at the bottom of the chamber, and the molecular pump is still installed vertically;
2) Open the side of the cavity, install a 90° elbow, and the molecular pump is still installed vertically;

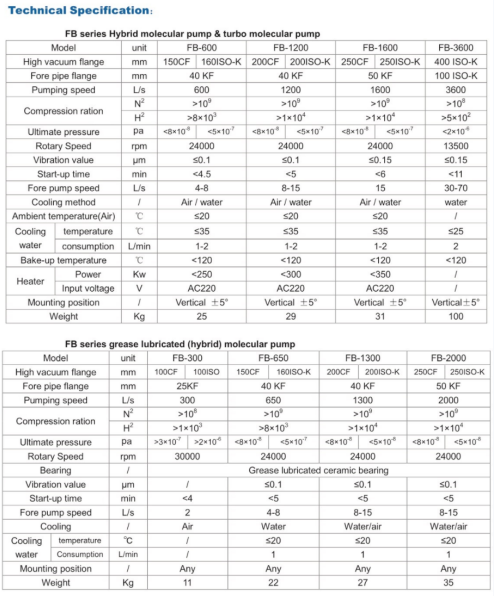

Specifications of our molecular pump are as follows, if you have any questions, please contact our sales team.
