Can the scroll pump be exhausted under pressure?

Whether it is EVP series or EVP-PB series scroll pump, the main purpose is to evacuate as vacuum pump, not to press as a compressor, better to keep their exhaust environment to be one atmospheric.

When there must be pressure at the exhaust side, then maximum exhaust pressure that EVP-PB series scroll pumps can accept is 0.5 kg. At this time, the power of the pump is increased, and the heat generation is more obvious; and due to different structures, EVP series scroll pumps can accept the maximum exhaust pressure of is 0.2 kg.

For safety reasons, do not operate the dry scroll pump under exhaust environment for a long time.

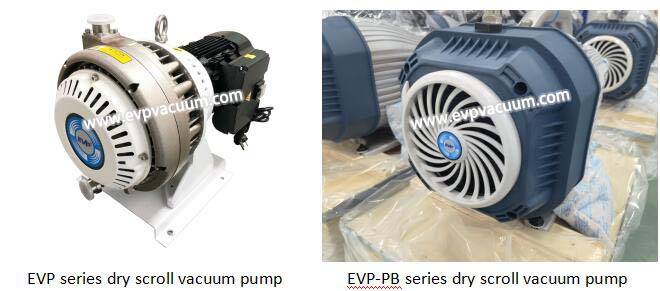

Please see the picture below for the physical photos of the two products. Currently, the models that our company can provide are:

EVP-150PB, 2.5L/s

EVP-200PB, 3L/s

EVP-300, 4L/s

EVP-500PB, 5L/s, this model is being upgraded, the pumping rate after the upgrade is 6L/s, and it is expected to be promoted in 2-3 months

EVP-600, 8L/s

EVP-800PB, 10L/s

EVP-1000, 16L/s
