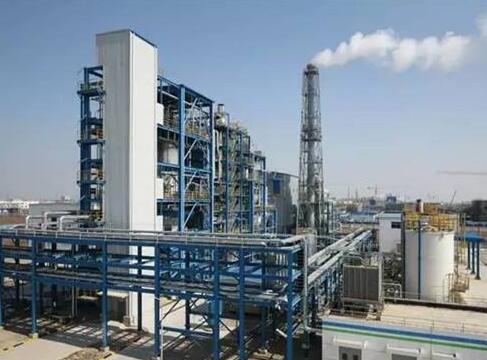

Rotary vane vacuum pump in chemical industry system

Rotary vane vacuum pump is a general fluid machinery widely used in chemical industry system. It has many advantages, such as wide performance adaptability (including flow rate, pressure head and adaptability to the properties of conveying media), small size, simple structure, easy operation and low operating cost.

These are mechanical vacuum pumps used in chemical industry systems. A rotary vane vacuum pump has been developed, which is specially designed for chemical and pharmaceutical processing. Compared with other vacuum pumps operating on the principle of rotating blades, the rotary vane vacuum pump has several remarkable characteristics:

Rotary vane vacuum pump in chemical industry system

The two compression stages are stacked and connected to each other to facilitate the initial compression of process gases in the first stage and the secondary compression in the subsequent stage, thus achieving a lower limit pressure.

These pumps are water-cooled and can adjust the working temperature within a certain range. These rotary vane vacuum pumps are rotary positive displacement pumps. The blade is placed in the slot of the rotor, and the rotor rotates eccentrically in the cylindrical shell. Rotation produces centrifugal force, which makes the blade slide out of the cylinder wall, produces different volumes of space and produces suction and compression effect.

As mentioned above, a small amount of lubricant is continuously injected into the pump chamber and the blade groove to provide lubrication for the blades and improve sealing. The blade does not directly contact the cylinder wall or blade groove, but slides on the lubricant film continuously regenerated by the injected lubricant. The process takes place in two compression stages before the process gas is discharged together with the workflow through the outlet, where the lubricant is collected in the muffler for discharging. The injected lubricant continuously flushes the vacuum pump during operation to protect it from corrosion and deposition.

Usually, the flow rate and pressure head of the selected rotary vane vacuum pump may be inconsistent with the requirements in the pipeline, or because of changes in production tasks and process requirements, flow regulation of the pump is required at this time, essentially changing the working point of the rotary vane pump. The working point of the rotary vane pump is determined by the characteristic curve of the pump and the characteristic curve of the pipeline system. Therefore, changing any characteristic curve can achieve the purpose of flow regulation. The flow regulation modes of rotary vane vacuum pump mainly include control valve, variable speed control, parallel, series adjustment of pump, constant temperature and humidity test box, etc.

Rotary vane vacuum pump main characteristics

No leakage: cemented carbide seals of different materials ensure that no leakage occurs in the transportation of different media.

Low noise: Two low noise bearings support the pump, running smoothly, except for the weak sound of the motor, basically no noise.

Low failure rate: the structure is simple and reasonable, the key parts are matched with the first-class quality in the world, and the fault-free working time of the whole machine is greatly improved.

Easy maintenance: Seal replacement, bearing, simple and convenient.

Land occupation is more economical: the outlet can be left, right and upward three directions, pipeline layout and installation, save space.

Smooth operation: absolute concentricity of pump shaft and excellent static and dynamic balance of impeller ensure smooth operation and no vibration.

Rotary vane vacuum pump in chemical industry system

SV Rotary Vane Vacuum Pump

Model Pump speed(m3/h) Motor Power(KW) Inlet Diam (inch) Rotary speed(rpm) Oil Capacity(L) G.W(kg) NoisedB (A) Dimensions(mm)
50HZ 60HZ
SV-010 10 12 0.37 (3ph)0.55 (1ph) G1/2 1400 0.5 20 64 405*253*210
SV-020 20 24 0.75 (3ph)0.90 (1ph) G1/2 2800 0.5 20 64 405*253*210
SV-025 25 30 0.75 (3ph)0.90 (1ph) G1/2 2800 0.5 22 64 405*253*210
SV-040 40 48 1.5 (3ph)2.2 (1ph) G11/4 1400 1.0 50 67 660*300*270
SV-063 63 75 2.2 G11/4 1400 2.0 83 68 695*420*295
SV-100 100 120 3.0 G11/4 1400 2.0 87 72 735*420*295
SV-160 160 192 4.0 G2 1400 4.5 152 74 805*520*410
SV-200 200 240 5.5 G2 1400 4.5 159 76 825*520*410
SV-250 250 300 7.5 G2 1400 7.0 230 76 1000*550*410
SV-300 300 360 7.5 G2 1400 7.0 236 76 1200*550*410
SV-630 630 750 15.0 DN100 960 35 620 75 1630*1300*980
SV-750 750 900 18.5 DN100 1150 35 640 76 1630*1300*980
