Vacuum pump for vacuum impregnator

Vacuum impregnator

Fully automatic vacuum impregnating machine can be used for insulation impregnation treatment of electrical coils such as micro-motor, transformer, power transformer, etc. It can improve the penetration ability of insulating paint, increase filling rate, thereby improving the overall mechanical strength of electrical coils, insulation strength, moisture-proof and mildew-proof properties.

Main technical parameters of fully automatic vacuum impregnator:
Equipment Vacuum: – 0.1MPA
Total power of equipment: 1.5KW
Vacuum pump: 2X-8A

The automatic vacuum impregnating machine consists of vacuum pump, vacuum buffer, impregnating tank, paint storage tank (bottom of the impregnating tank) and electrical control unit.

Next, we will introduce the vacuum pump used in the automatic vacuum impregnator.

Rotary vane vacuum pump

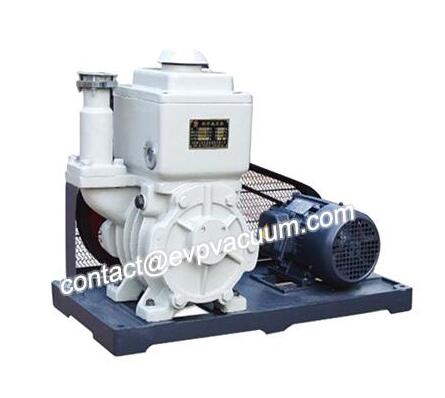

Vacuum pump for vacuum impregnator

It is a kind of oil circulation rotary vane mechanical pump. It is the main equipment for extracting gas from sealed container to obtain vacuum. Through the unremitting efforts of our company’s engineers and technicians from the prototype vacuum pump development, a reasonable combination of various performance, so that the vacuum pump is more suitable for harsh environment, frequent start-up environment.

The exhaust device of rotary vane vacuum pump is made of special steel, and the valve sheet is adjusted separately, which effectively prolongs the service life. The inner device of oil pipeline effectively avoids the influence of external force on the pump work by causing the fracture or leakage of oil pipeline. The oil tank is equipped with a settling device to filter, separate and precipitate impurities, dust and condensable gases that enter the oil in the pumping atmosphere when the pump is working, so as to improve the service performance and prolong the service life of the pump oil. The whole structure of rotary vane vacuum pump is compact, stable, small vibration, easy to assemble, disassemble and adjust, and beautiful appearance.

Rotary vane vacuum pump is equipped with motor of 5.5KW, which saves 25% of the power compared with similar pumps, and plays an energy-saving role. The technical index test has reached the same level.

Rotary vane vacuum pump seat, intake size, main vulnerable parts, etc. Replacement of single pump, without modification, simple installation, convenient and fast, is your best choice for entrepreneurship and development.

Rotary vane vacuum pump features:

1. High-grade cast iron material, solid and reliable structure, corrosion resistance, good wear resistance, easy to install.
2. Cam oil rotary design, large exhaust, no friction, low fuel consumption, rapid separation of oil and gas, low oil content in exhaust gas, low vibration, low noise.
3. Water-cooling and air-cooling work together, and the machine works well at constant temperature. After filtering and steam treatment, the machine stains remain pure for a long time, and the effect is good.
4. Simple operation, easy maintenance and repair, long service life, vertical design, small floor area, saving installation space.

EVP Vacuum Equipment Manufacturing Co., Ltd. is a professional manufacturer of vacuum equipment integrating R&D, manufacturing and sales. It is also a professional service provider for repairing imported vacuum pumps.
Focusing on R&D and manufacturing of vacuum equipment for 14 years, we took the lead in adopting German vacuum pump production technology. We have 100%

German and Japanese equipment manufacturers in the industry. It is also a vacuum pump manufacturer with solid and manufacturing capacity in South China. Products with excellent quality, good service to promote product sales at home and abroad, deeply trusted by customers. The company has a national technical service network, which can provide convenient and professional technical services for users all over the country.

Focusing on the building of elite team, the company has an experienced team engaged in research and development, production and maintenance of vacuum equipment, providing customers with comprehensive oil-type rotary vane vacuum pump, oil-free claw vacuum pump, Roots vacuum pump, oil-free screw vacuum pump, oil-free piston vacuum pump, liquid ring vacuum pump, vacuum unit, vacuum system. Systematic technology application solutions and after-sales service. In the future fiercely competitive market, only physical manufacturers can reduce procurement costs and spot supply for customers. Welcome customers from all walks of life to come to our factory for evaluation and guidance!
