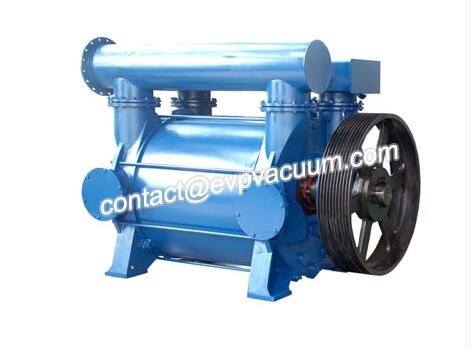

Liquid ring vacuum pump compressor

Water ring vacuum pump and compressor

The new water ring vacuum pump and compressor are the high efficiency and energy saving products developed by our company with the advanced technology imported from Germany.
This series of pumps are of single stage and single action structure with the advantages of simple structure, convenient maintenance, reliable operation and high efficiency and energy saving. Compared with the SK, 2SK and SZ series water ring vacuum pumps that are widely used in China, they have the obvious advantages of high vacuum degree, low power consumption and reliable operation, with the working efficiency up to 60%-70%, and that of SK, 2SK and SZ series up to 30-40%.

The main structure features of the water-ring vacuum pump and compressor produced by our company are as follows:

SKF or FAG original imported bearings are used for all bearings, which ensures the accurate positioning of the vacuum pump impeller and high stability during operation.
The material of the impeller is all made of ductile iron or welded steel plate, which fully ensures the stability of the vacuum pump impeller under various adverse working conditions and greatly improves the service life of the vacuum pump.
The pump body is made of steel plate, which improves the service life of the vacuum pump.
The shaft sleeve of the vacuum pump is the most easily damaged part, which is made of high chromium stainless steel.
Belt pulley (belt drive) standard high-precision cone pulley, reliable operation, long life of the belt, easy to disassemble.
The coupling (direct coupling drive) adopts the standard high strength elastic coupling, the elastic element is made of polyurethane material, the operation is stable and reliable, the service life is long
Unique upper – mounted air – water separator saves space and effectively reduces noise.
All castings are made of resin sand with good surface quality. The surface of the casting need not be greasy, so that the best heat dissipation effect of the vacuum pump.
Mechanical seal (optional parts) all imported parts, fully ensure the vacuum pump in the long run without leakage.

Liquid ring vacuum pump compressor

Water ring vacuum pump performance table

Speed
(Driving mode)[r/min]
Max. shaft power[KW] Motor power[KW] Max.  Capacity[m3/h]    [m3/min] Ultimate vacuum[mbar] Weight (excl.motor)[Kg]
2BE3- 40 300 (V-belt / gear box) 64.8 6-75 4200 70 160 4050
330 (V-belt / gear box) 75 6-90 4650 77
350 (V-belt / gear box) 86.5 110 4680 81
390 (V-belt / gear box) 99 110 5460 91
430 (V-belt / gear box) 117 132 6000 100
498 (V-belt / gear box) 135 160 6900 115
530 (V-be t / gear box) 148 185 7440 124
570 (V-belt / gear box) 167 200 8000 133
2BE3- 42 300  (V-belt / gear box) 100 6-110 5850 97.5 160 4200
350  (V-belt / gear box) 109 132 6300 105
390  (V-belt / gear box) 133 160 7650 127
449  (V-belt / gear box) 157 185 8550 142
490  (V-belt / gear box) 180 200 9200 154
530  (V-belt / gear box) 200 220 10100 168
570  (V-belt / gear box) 225 250 10600 177
2BE3- 50 236  (V-belt / gear box) 128 160 7500 125 160 6000
266  (V-belt / gear box) 140 160 8500 142
300  (V-belt / gear box) 173 200 10000 167
336  (V-belt / gear box) 235 250 11400 190
366  (V-belt / gear box) 261 280 12500 208
420  (V-belt / gear box) 278 315 13700 228
2BE3- 52 236  (V-belt / gear box) 168 185 9000 150 160 6500
266  (V-belt / gear box) 175 200 10560 176
336  (V-belt / gear box) 260 280 13800 230
366  (V-belt / gear box) 285 315 15000 250
421  (V-belt / gear box) 331 400 16800 280
468  (V-belt / gear box) 416 500 18450 307
2BE3- 60 236  (gear box) 204 250 11820 197 160 8900
265  (gear box) 243 280 14200 236
295  (gear box) 285 315 15900 265
340  (gear box) 365 400 17400 290
370  (gear box) 386 450 19400 323
2BE3- 62 200  (gear box) 195 250 13200 220 160 92500
230  (gear box) 260 315 15180 253
266  (gear box) 300 355 17300 288.3
297  (gear box) 348 400 19300 322
330  (gear box) 395 450 21300 355
372  (gear box) 490 560 24000 400
2BE3- 67 180  (gear box) 250 315 14500 242 160 12200
210  (gear box) 285 315 18000 300
270  (gear box) 415 450 22800 380
300  (gear box) 465 560 25800 430
330  (gear box) 545 630 27720 462
370  (gear box) 670 800 30960 516
2BE3- 72 190  (gear box) 338 400 20100 335 160 15000
210  (gear box) 395 450 23760 396
240  (gear box) 475 560 27000 450
270  (gear box) 550 630 30000 500
300  (gear box) 642 710 33600 560
2BE3-80N





190  (gear box) 507 560 30000 500 160 19000
210  (gear box) 585 630 32280 538
240  (gear box) 710 800 36600 610
270  (gear box) 849 900 40800 680
300  (gear box) 796 10000 44800 748
2BE3-90N 170  (gear box) 570 630 39000 650 160 24500
195  (gear box) 730 800 46800 780
210  (gear box) 815 900 49800 830
230  (gear box) 925 1000 52800 880
245  (gear box) 1035 1120 55800 930
2BE3-100N 155   (gear box) 730 800 48000 800 160 31000
165   (gear box) 840 900 51300 855
175   (gear box) 900 1000 54000 900
190   (gear box) 995 1120 59400 990
200   (gear box) 1146 1250 62400 1040



Note: the motor power selected above can work under most working conditions. If the exhaust pressure is high (0.02-0.05mpa), the motor power should be increased accordingly. If the vacuum pump works normally when the shaft power is small, can also choose close to the shaft power of the motor power, so more energy saving.

Note: affected by the water temperature on the performance of water ring vacuum pumps, and water ring vacuum pump performance curves are obtained under the condition of the water temperature of 15 ℃, so in the actual selection of water ring vacuum pump when dealing with extraction rate of water ring vacuum pump. Please refer to the modification method: the influence of water temperature on the performance of water ring vacuum pump.

(The article comes from the Internet. If reprinting is not allowed, please contact our company to delete it.)
