Vacuum pump type

Speaking of the vacuum pump type, there are too many, because there are many types of vacuum pumps, widely used in plastic machinery, brick and tile machinery, cryogenic equipment, paper machinery, food machinery, industrial electric furnaces, electronic industry, vacuum equipment, petrochemical industry, metallurgy, mining, medicine and foundation treatment and other fields. Want to know the specific application of various vacuum pumps in the chemical industry, we will give you a detailed explanation.

Vacuum pump type

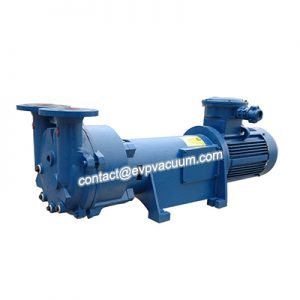

Water-ring vacuum pump

Water-ring vacuum pump (hereinafter referred to as water-ring pump) is a kind of coarse vacuum pump. The maximum vacuum it can obtain is 2000-4000Pa, and the air ejector in series can reach 270-670Pa. Water ring pump can also be used as a compressor, known as water ring compressor, is a low-pressure compressor.

Water ring pumps were originally used as self-suction pumps. It is composed of impeller, pump body, suction and exhaust disc, water ring, suction port, exhaust port and auxiliary exhaust valve formed by water in the inner wall of pump body.

In the petrochemical industry, it is mainly used in gas recovery, gas boost, vacuum distillation, exhaust compression, tail gas recovery, polyester production, PVC production, vacuum transportation of various materials and other projects.

Vacuum pump type

Dry screw vacuum pump

Dry screw vacuum pump is a high-tech product, which is mainly used in high-purity vacuum process. It has high vacuum degree, can adapt to harsh conditions, has the ability to extract condensation and particulate gas, is not suitable for clean environment, and is easy to do anti-corrosion treatment.

Dry screw vacuum pump is a kind of suction and exhaust equipment which uses a pair of screw to make synchronous high-speed reverse rotation in the pump shell. The two screw are supported by bearing and installed in the pump shell. There is a certain gap between screw and screw. Therefore, when the pump works, there is no friction between them, smooth operation, low noise and no need to wet the working chamber. Lubricating oil, therefore, dry screw pump can remove a large amount of steam and a small amount of dust gas occasions, the limit vacuum is higher, lower power consumption, energy saving, maintenance-free advantages. In chemical industry, it is used for vacuum distillation and solvent extraction to recover solvents efficiently. In fatty acid production, it is used to eliminate water pollution and remove obstructions in ejectors.

Reciprocating vacuum pump

Reciprocating vacuum pump

Reciprocating vacuum pump (also known as piston vacuum pump) is one of the low vacuum acquisition equipment. Reciprocating vacuum pump makes the piston reciprocating in the cylinder by connecting rod crankshaft mechanism, periodically changes the volume of suction and exhaust chamber, and relies on suction and exhaust valve to complete suction and exhaust action, so as to obtain vacuum.

Reciprocating vacuum pump is suitable for pumping non-solid particles, non-corrosive gas. This kind of vacuum pump has higher pumping rate and higher vacuum. Therefore, it is widely used in chemical plants. But its structure is complex and its maintenance is large.

Vacuum pump type

Jet vacuum pump

Jet vacuum pump is a kind of fluid action pump, which uses the energy conversion of fluid flow to achieve the conveying flow. The working fluid of the jet pump can be steam, air, water and oil. Jet vacuum pump, also known as jet vacuum pump, uses the high-speed jet of the nozzle to extract the gas from the container to obtain vacuum. It is mainly used as a vacuum pump in chemical production and widely used in evaporation and distillation process. In petrochemical production, jet pumps are not only used to replace mechanical vacuum pumps, but also widely used in mixers, coolers, absorbers and so on.

Roots vacuum pump

Roots vacuum pump

Roots vacuum pump (Roots pump) refers to a varactor vacuum pump with two blade-shaped rotors rotating synchronously in opposite directions. There is a small gap between the rotors, the rotors and the inner wall of the pump housing, but there is no contact with each other. Roots vacuum pump is widely used in vacuum distillation, vacuum concentration and vacuum drying in chemical industry. Roots pump has been developed rapidly at home and abroad in recent years.
